21458-22-2-0500-0102-1-TS

Active

CnC Tech, LLC

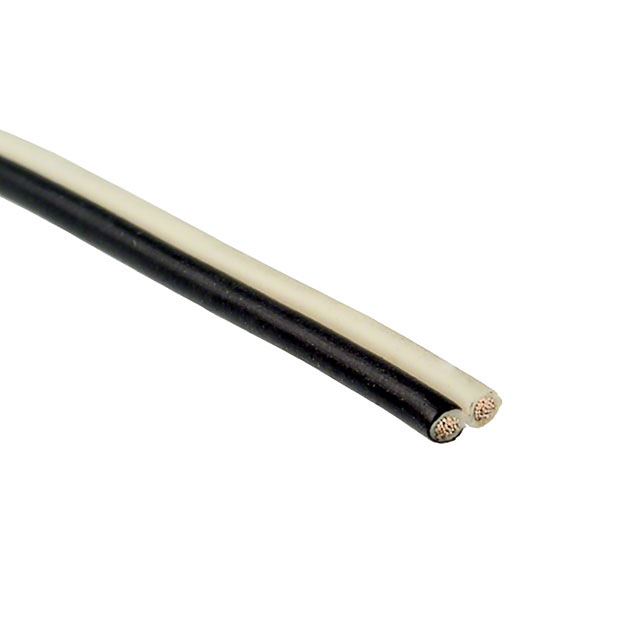

CABLE 2COND 22AWG BLK/WHITE 100'

Search across all available documentation for this part.

Active

CnC Tech, LLC

CABLE 2COND 22AWG BLK/WHITE 100'

Technical Specifications

Parameters and characteristics for this part

Specification	21458-22-2-0500-0102-1-TS

Cable Type	Multi-Conductor
Conductor Material	Copper, Tinned
Conductor Strand [custom]	0.0063 "
Conductor Strand [custom]	17
Jacket (Insulation) Diameter [diameter]	3.2 mm
Jacket (Insulation) Diameter [diameter]	0.126 in
Jacket (Insulation) Material	Polyphenylene Ether (PPE)
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	White, Black
Length	15.24 m
Length [x]	50 ft, 100 ft
Length [x]	30.5 m
Number of Conductors	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-10 °C
Ratings	UL Style 21458
Voltage	300 V
Wire Gauge	22 AWG

Part	Conductor Material	Wire Gauge	Number of Conductors	Jacket Color	Length	Length [x]	Ratings	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Cable Type	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Conductor Strand [custom]	Conductor Strand [custom]
CnC Tech, LLC 21458-22-2-0500-0102-1-TS	Copper Tinned	22 AWG	2	Black White	15.24 m	50 ft 100 ft	UL Style 21458	Polyphenylene Ether (PPE)	3.2 mm	0.126 in	0.015 in	0.381 mm	80 C	-10 °C	Multi-Conductor	30.5 m	0.0063 "	17	300 V
CnC Tech, LLC 21458-22-2-0500-0402-1-TS	Copper Tinned	22 AWG	2	Red White	15.24 m	25 ft 50 ft 500 '	UL Style 21458	Polyphenylene Ether (PPE)	3 mm 3.2 mm	0.118 in 0.126 in	0.015 in	0.381 mm	80 C	-10 °C	Multi-Conductor	7.62 m 152.4 m	0.0063 "	17	300 V	17	34 AWG
CnC Tech, LLC 21458-22-2-0500-0104-1-TS	Copper Tinned	22 AWG	2	Black Red	15.24 m	25 ft 50 ft 100 ft 500 '	UL Style 21458	Polyphenylene Ether (PPE)	3.2 mm	0.126 in	0.015 in	0.381 mm	80 C	-10 °C	Multi-Conductor	7.62 m 30.5 m 152.4 m	0.0063 "	17	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Conductor Multi-Conductor Cable Black, White 22 AWG 100.0' (30.5m)
