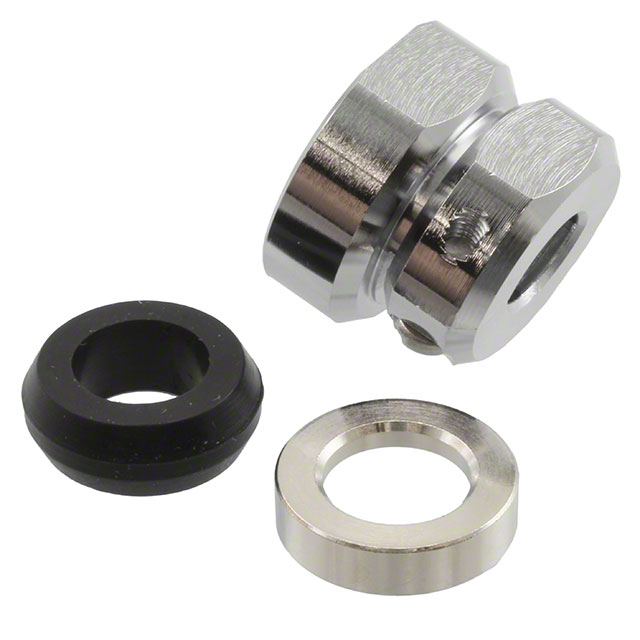

JR16WCC-10(72)
ActiveHirose Electric USA, Inc.
CONN CABLE CLAMP SZ16 BLACK M20
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JR16WCC-10(72) |
|---|---|
| Cable Exit | 180 ° |
| Cable Opening [custom] | 10 mm |
| Cable Opening [custom] | 0.394 in |
| Color | Black |
| Diameter - Outside [diameter] | 0.906 in |
| Diameter - Outside [diameter] | 23 mm |
| Features | Clamp Screws, Washer, Gasket |
| For Use With/Related Products | JR-W and RM-W Series Plug |
| Includes | 2 Screws, 1 Gasket, 1 Cable Clamp, 1 Washer |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material | Brass, Zinc Alloy, Aluminum Alloy |
| Plating | Chrome |
| Shell Size - Insert | 16 |
| Thread Size | M20x0.75 |
| Type | Cable Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 10.54 | |
| 20 | $ 9.35 | |||
| 40 | $ 8.63 | |||
| 100 | $ 8.44 | |||
Description
General part information
JR16WCC Series
Black Connector Cable Clamp M20x0.75 16
