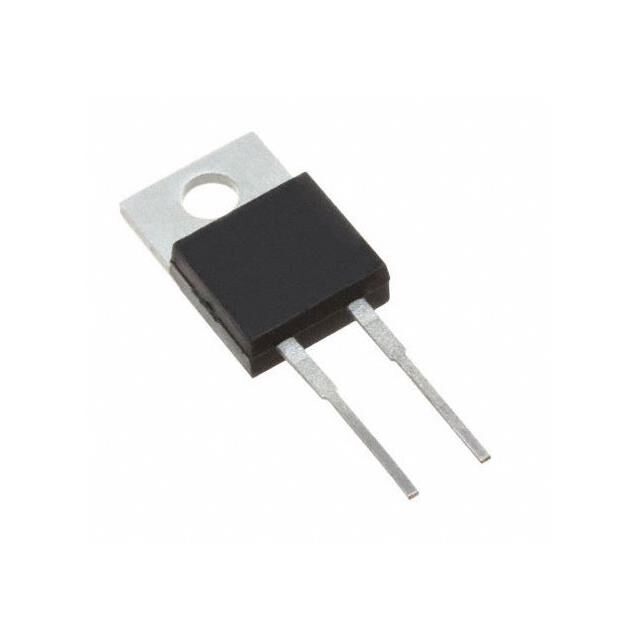

VS-10ETF10-M3

Active

Vishay General Semiconductor - Diodes Division

DIODE GEN PURP 1KV 10A TO220AC

Search across all available documentation for this part.

Active

Vishay General Semiconductor - Diodes Division

DIODE GEN PURP 1KV 10A TO220AC

Technical Specifications

Parameters and characteristics for this part

Specification	VS-10ETF10-M3

Current - Average Rectified (Io)	10 A
Current - Reverse Leakage @ Vr	100 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	TO-220-2
Reverse Recovery Time (trr)	310 ns
Speed	200 mA, 500 ns
Supplier Device Package	TO-220AC
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1000 V
Voltage - Forward (Vf) (Max) @ If	1.33 V

Part	Mounting Type	Package / Case	Voltage - Forward (Vf) (Max) @ If	Technology	Supplier Device Package	Speed	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Reverse Recovery Time (trr)	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]
Vishay General Semiconductor - Diodes Division VS-10ETF10-M3	Through Hole	TO-220-2	1.33 V	Standard	TO-220AC	200 mA 500 ns	10 A	1000 V	100 µA	310 ns	150 °C	-40 °C
Vishay General Semiconductor - Diodes Division VS-10ETF10PBF	Through Hole	TO-220-2	1.33 V	Standard	TO-220AC	200 mA 500 ns	10 A	1000 V		310 ns	150 °C	-40 °C
Vishay General Semiconductor - Diodes Division VS-10ETF10FPPBF	Through Hole	TO-220-2 Full Pack	1.33 V	Standard	TO-220AC Full Pack	200 mA 500 ns	10 A	1000 V		310 ns	150 °C	-40 °C
Vishay General Semiconductor - Diodes Division 10ETF10	Through Hole	TO-220-2	1.33 V	Standard	TO-220AC	200 mA 500 ns	10 A	1000 V	100 µA	310 ns	150 °C	-40 °C
Vishay General Semiconductor - Diodes Division VS-10ETF10STRL-M3	Surface Mount	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	1.33 V	Standard	TO-263AB (D2PAK)	200 mA 500 ns	10 A	1000 V	100 µA	310 ns	150 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 1000 V 10A Through Hole TO-220AC
