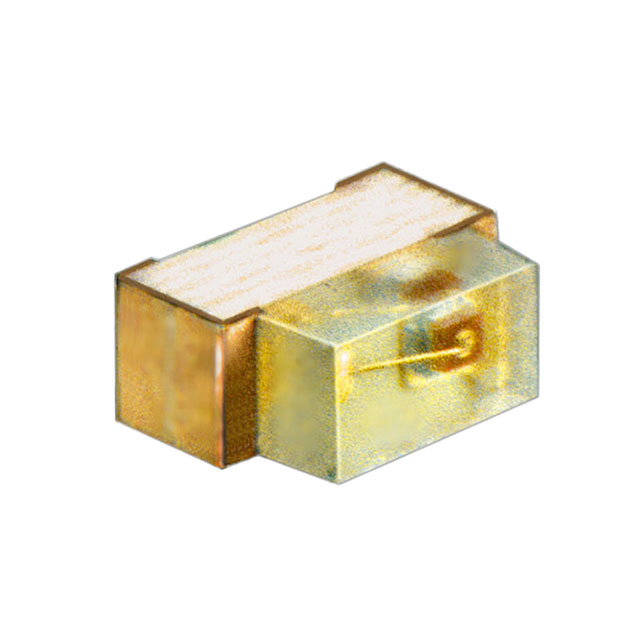

CL-270YG-C-TS
ActiveCitizen Finedevice Co Ltd
LED GREEN SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
CL-270YG-C-TS
ActiveCitizen Finedevice Co Ltd
LED GREEN SMD R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CL-270YG-C-TS |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] | 0.6 mm |
| Lens Size [x] | 1.2 mm |
| Lens Size [y] | 0.6 mm |
| Lens Style | Rectangle with Flat Top |
| Millicandela Rating | 18 mcd |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 1.15 mm |
| Voltage - Forward (Vf) (Typ) | 2.2 V |
| Wavelength - Dominant | 575 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.65 | |
| 10 | $ 0.39 | |||
| 100 | $ 0.25 | |||
| 500 | $ 0.20 | |||
| 1000 | $ 0.18 | |||
| 2000 | $ 0.17 | |||
| Digi-Reel® | 1 | $ 0.65 | ||
| 10 | $ 0.39 | |||
| 100 | $ 0.25 | |||
| 500 | $ 0.20 | |||
| 1000 | $ 0.18 | |||
| 2000 | $ 0.17 | |||
| Tape & Reel (TR) | 5000 | $ 0.16 | ||
| 10000 | $ 0.15 | |||
| 15000 | $ 0.14 | |||
| 25000 | $ 0.14 | |||
| 35000 | $ 0.14 | |||
| 50000 | $ 0.13 | |||
Description
General part information
CL-270 Series
Green 575nm LED Indication - Discrete 2.2V 2-SMD, No Lead
Documents
Technical documentation and resources
No documents available
