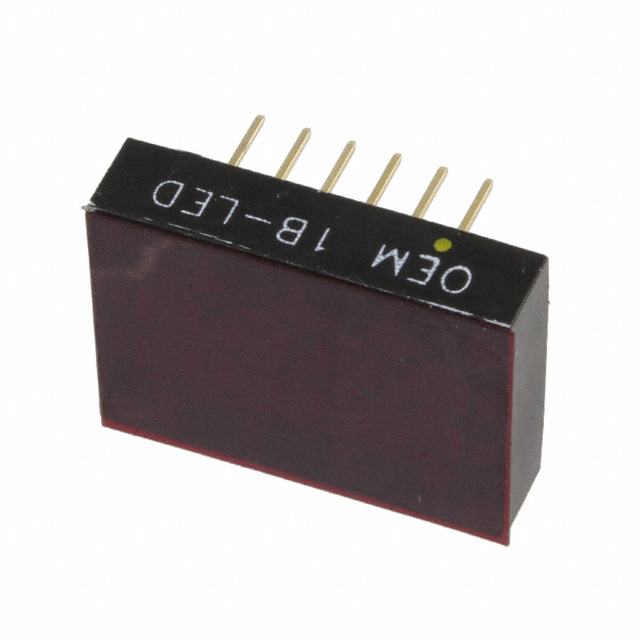

OEM 1B-LED

Active

Lascar Electronics

ULTRA COMPACT LED VOLTMETER

Search across all available documentation for this part.

Active

Lascar Electronics

ULTRA COMPACT LED VOLTMETER

Technical Specifications

Parameters and characteristics for this part

Specification	OEM 1B-LED

Display Characters - Height [y]	0.315 in
Display Characters - Height [y]	8 mm
Display Type	LCD - Red Characters, Backlight
Measuring Range [Max]	0.2 VDC
Measuring Range [Min]	-200 mV
Measuring Type	Voltage
Number of Characters Per Row	3.5
Termination Style	PC Pin
Type	Voltmeter
Voltage - Supply [Max]	5.25 V
Voltage - Supply [Min]	4.75 V

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Measuring Type	Type	Measuring Range [Min]	Measuring Range [Max]	Number of Characters Per Row	Display Characters - Height [y]	Display Characters - Height [y]	Termination Style	Display Type
Lascar Electronics OEM 1B-LED	4.75 V	5.25 V	Voltage	Voltmeter	-200 mV	0.2 VDC	3.5	0.315 in	8 mm	PC Pin	LCD - Red Characters Backlight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Voltmeter LCD - Red Characters, Backlight Display Panel Mount
