SNP1910M4

Active

HELLERMANNTYTON

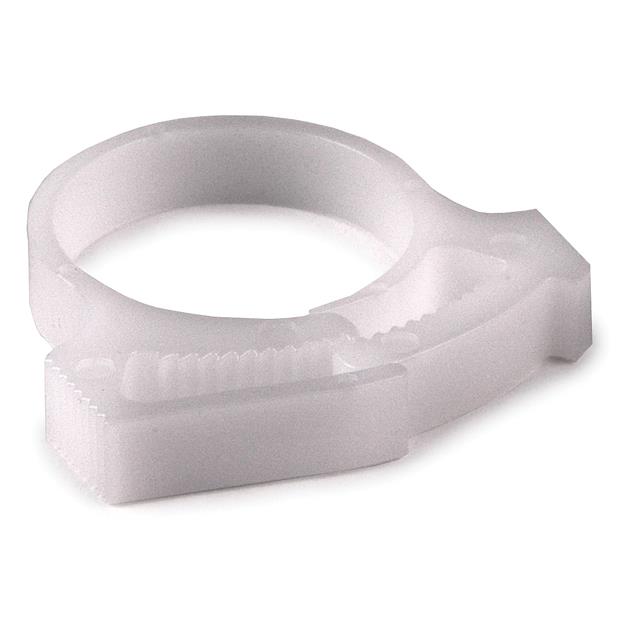

SNAPPER HOSE CLAMP, .88" 1.0" BUNDLE DIAMETER, POM, WHITE, 1000/PKG

Search across all available documentation for this part.

Active

HELLERMANNTYTON

SNAPPER HOSE CLAMP, .88" 1.0" BUNDLE DIAMETER, POM, WHITE, 1000/PKG

Technical Specifications

Parameters and characteristics for this part

Specification	SNP1910M4

Color	White
Length [Max]	1.409 in
Length [Max]	35.79 mm
Length [Min]	0.899 in
Length [Min]	22.83 mm
Material	Polyacetal (POM)
Material Flammability Rating	UL94 HB
Material Thickness	0.07 in
Material Thickness	1.78 mm
Opening Size [Max] [z]	0.989 in
Opening Size [Max] [z]	25.12 mm
Opening Size [Min] [z]	21.82 mm
Opening Size [Min] [z]	0.859 in
Type	Clamp, Hose
Type Attributes	Push-Fit
Width	5.89 mm
Width	0.232 in

Part	Material Thickness	Material Thickness	Material	Type	Color	Type Attributes	Width	Width	Material Flammability Rating	Length [Max]	Length [Max]	Length [Min]	Length [Min]	Opening Size [Max] [z]	Opening Size [Min] [z]	Opening Size [Max] [z]	Opening Size [Min] [z]
HELLERMANNTYTON SNP1910M4	0.07 in	1.78 mm	Polyacetal (POM)	Clamp Hose	White	Push-Fit	5.89 mm	0.232 in	UL94 HB	1.409 in	35.79 mm	0.899 in	22.83 mm	0.989 in	21.82 mm	25.12 mm	0.859 in
HELLERMANNTYTON SNP1910C2	0.07 in	1.78 mm	Polyacetal (POM)	Clamp Hose	White	Push-Fit	5.89 mm	0.232 in	UL94 HB	1.409 in	35.79 mm	0.899 in	22.83 mm	0.989 in	21.82 mm	25.12 mm	0.859 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	27000	$ 0.62
LCSC	Piece	1	$ 0.29
Newark	Pack of 1000	25	$ 771.68
