12STRREDTHHN50

Active

Remington Industries

HOOK-UP STRND 12AWG 600V RED 50'

Search across all available documentation for this part.

Active

Remington Industries

HOOK-UP STRND 12AWG 600V RED 50'

Technical Specifications

Parameters and characteristics for this part

Specification	12STRREDTHHN50

Cable Type	Hook-Up
Conductor Material	Copper, Bare
Conductor Strand [custom]	19
Conductor Strand [custom]	25
Features	Chemical Resistant, Oil Resistant, Abrasion Resistant, Solvent Resistant
Jacket (Insulation) Diameter [diameter]	0.128 in
Jacket (Insulation) Diameter [diameter]	3.25 mm
Jacket (Insulation) Material	Nylon, Polyamide (PA)
Jacket Color	Red
Length	15.24 m
Length [x]	50 ft
Voltage	600 V
Wire Gauge	12 AWG

Part	Jacket (Insulation) Material	Length [x]	Length [x]	Cable Type	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Features	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Length	Operating Temperature [Max]	Operating Temperature [Min]
Remington Industries 12STRWHITHHN100	Nylon Polyamide (PA)	30.5 m	100 ft	Hook-Up	Copper Bare	0.128 in	3.25 mm	600 V	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	12 AWG	19	25
Remington Industries 12STRREDTHHN50	Nylon Polyamide (PA)		50 ft	Hook-Up	Copper Bare	0.128 in	3.25 mm	600 V	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	12 AWG	19	25	Red	15.24 m
Remington Industries 12STRREDGPT25	Poly-Vinyl Chloride (PVC)	7.62 m	25 ft	Hook-Up	Copper Bare	0.142 in	3.61 mm	60 V	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	12 AWG	19	25	Red		85 °C	-40 °C
Remington Industries 12STRGRETHHN50	Nylon Polyamide (PA)		50 ft	Hook-Up	Copper Bare	0.128 in	3.25 mm	600 V	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	12 AWG	19	25	Green	15.24 m
Remington Industries 12STRWHIGPT25	Poly-Vinyl Chloride (PVC)	7.62 m	25 ft	Hook-Up	Copper Bare	0.142 in	3.61 mm	60 V	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	12 AWG	19	25			85 °C	-40 °C
Remington Industries 12STRBLATHHN100	Nylon Polyamide (PA)	30.5 m	100 ft	Hook-Up	Copper Bare	0.128 in	3.25 mm	600 V	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	12 AWG	19	25	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.29

General part information

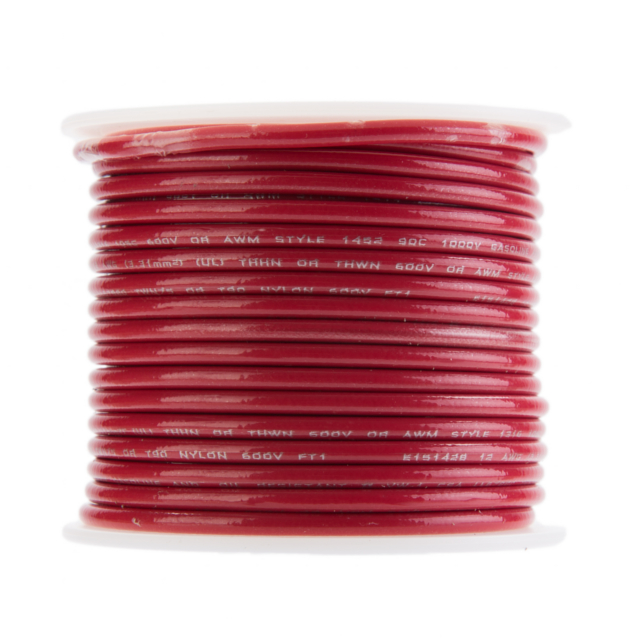

12 AWG Hook-Up Wire 19/25 Red 600V 50.00' (15.24m)

Technical documentation and resources
