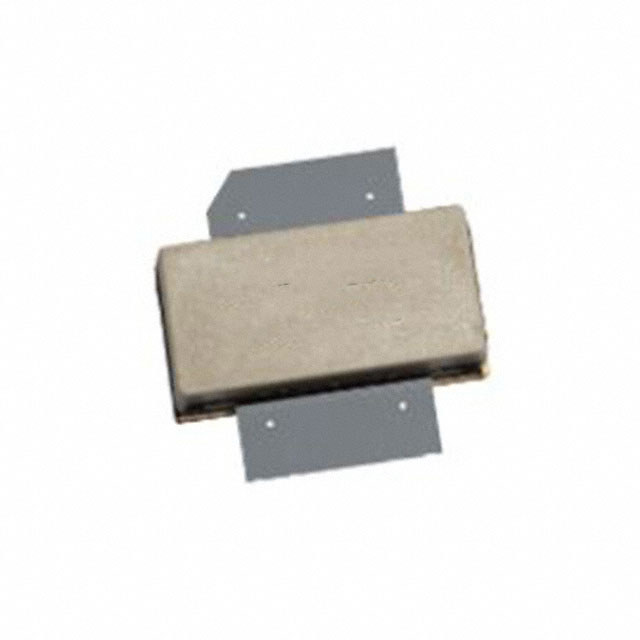

BLC2425M9LS250Z

Active

Ampleon USA Inc.

RF MOSFET LDMOS 32V SOT1270-1

Search across all available documentation for this part.

Active

Ampleon USA Inc.

RF MOSFET LDMOS 32V SOT1270-1

Technical Specifications

Parameters and characteristics for this part

Part	Frequency	Voltage - Rated	Current - Test	Power - Output	Supplier Device Package	Voltage - Test	Mounting Type	Package / Case	Configuration	Gain	Frequency [Max]	Frequency [Min]	Current Rating (Amps)
Ampleon USA Inc. BLC2425M8LS300PZ	2.45 GHz	65 V	20 mA	300 W	SOT1250-1	32 V	Surface Mount	SOT1250-1	Common Source Dual	17.5 dBi
Ampleon USA Inc. BLC2425M10LS500PY		65 V	20 mA	500 W	SOT1250-1	32 V	Surface Mount	SOT1250-1	2 N-Channel (Dual) Common Source	14.5 dBi	2.5 GHz	2.4 GHz	4.2 µA
Ampleon USA Inc. BLC2425M9LS250Z	2.45 GHz	65 V	20 mA	250 W	SOT-1270-1	32 V	Surface Mount	SOT-1270-1		18.5 dBi
Ampleon USA Inc. BLC2425M10LS250Y		65 V	100 mA	250 W	SOT-1270-1	32 V	Surface Mount	SOT-1270-1	N-Channel	14.4 dBd	2.5 GHz	2.4 GHz	2.8 µA
Ampleon USA Inc. BLC2425M10LS250Z		65 V	100 mA	250 W	SOT-1270-1	32 V	Surface Mount	SOT-1270-1		14.4 dBd	2.5 GHz	2.4 GHz	2.8 µA
Ampleon USA Inc. BLC2425M8LS300PY	2.45 GHz	65 V	20 mA	300 W	SOT1250-1	32 V	Surface Mount	SOT1250-1	Common Source Dual	17.5 dBi

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Mosfet 32 V 20 mA 2.45GHz 18.5dB 250W SOT-1270-1
