W8382-3SG-P-315

Active

Conxall/Switchcraft

MINI-CON-X INSTA-CLICK CONNECTOR

Search across all available documentation for this part.

Active

Conxall/Switchcraft

MINI-CON-X INSTA-CLICK CONNECTOR

Technical Specifications

Parameters and characteristics for this part

Specification	W8382-3SG-P-315

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Thermoplastic
Cable Opening [custom]	0.17 in, 0.15 in
Cable Opening [custom]	3.81 mm, 4.32 mm
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	Coupling Nut, UV Resistant, Backshell
Ingress Protection	IP68, IP66, IP67
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Material	Polybutylene Terephthalate (PBT)
Shielding	Unshielded
Voltage Rating	300 VAC

Part	Color	Orientation	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Backshell Material, Plating	Features	Mounting Type	Fastening Type	Cable Opening [custom]	Cable Opening [custom]	Shielding	Contact Finish - Mating	Contact Material	Insert Material	Current Rating (Amps)	Shell Material	Voltage Rating	Applications	Connector Type
Conxall/Switchcraft W8382-3SG-P-315	Black	Keyed	IP66 IP67 IP68	85 °C	-40 °C	Thermoplastic	Backshell Coupling Nut UV Resistant	Free Hanging (In-Line)	Bayonet Lock	0.15 in 0.17 in	3.81 mm 4.32 mm	Unshielded	Gold	Copper Alloy	Thermoplastic	Varies by Wire Gauge	Polybutylene Terephthalate (PBT)	300 VAC	Automotive Communication Systems Instrumentation	Female Sockets Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

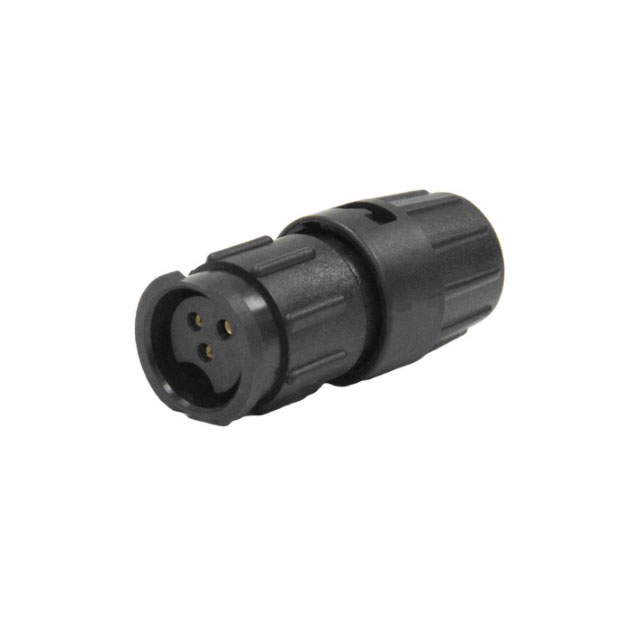

3 Position Circular Connector Plug, Female Sockets Solder Cup
