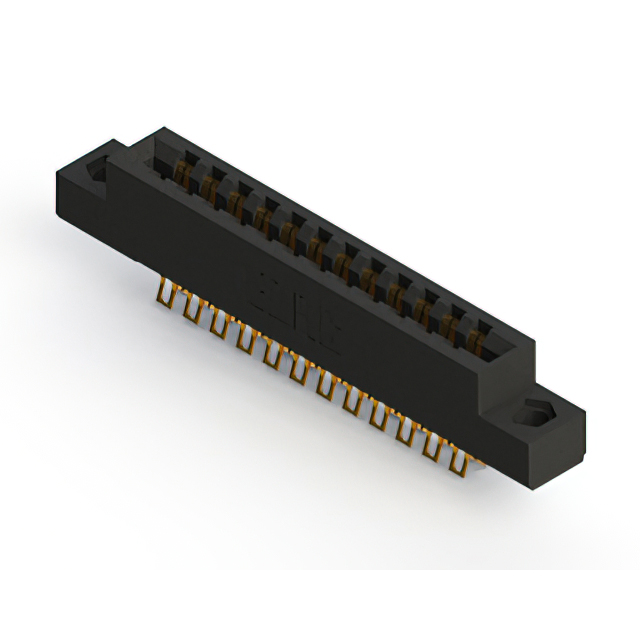

355-024-555-504
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 24POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
355-024-555-504
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 24POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 355-024-555-504 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Extender |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 24 |
| Number of Positions/Bay/Row [custom] | 12 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
355-024 Series
| Part | Card Type | Color | Gender | Read Out | Pitch [x] | Pitch [x] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Termination Rows | Number of Positions/Bay/Row [custom] | Termination | Material - Insulation | Contact Finish | Number of Rows | Flange Feature | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature [diameter] | Flange Feature [diameter] | Features | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Non Specified - Dual Edge | Black | Female | Dual | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 24 | 10 Áin | 0.25 Ám | 2 | 12 | Solder Eyelet(s) | Polyester Thermoplastic | Gold | 2 | Flush Mount M3 Threaded Insert Top Opening | Semi Bellows | -40 °C | 105 ░C | ||||
EDAC Inc. | Non Specified - Dual Edge | Black | Female | Dual | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 24 | 10 Áin | 0.25 Ám | 2 | 12 | Solder | Polyester Thermoplastic | Gold | 2 | Flush Mount Top Opening Unthreaded | Semi Bellows | -40 °C | 105 ░C | 3.25 mm | 0.128 " | Card Extender | Board Edge Straddle Mount |
EDAC Inc. | Non Specified - Dual Edge | Black | Female | Dual | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 24 | 10 Áin | 0.25 Ám | 2 | 12 | Solder | Polyester Thermoplastic | Gold | 2 | Flush Mount Top Opening Unthreaded | Semi Bellows | -40 °C | 105 ░C | 3.96 mm | 0.156 in | Panel Mount Through Hole | |
EDAC Inc. | Non Specified - Dual Edge | Black | Female | Dual | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 24 | 10 Áin | 0.25 Ám | 2 | 12 | Solder | Polyester Thermoplastic | Gold | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Semi Bellows | -40 °C | 105 ░C | Card Extender | Board Edge Straddle Mount | ||
EDAC Inc. | Non Specified - Dual Edge | Black | Female | Dual | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 24 | 10 Áin | 0.25 Ám | 2 | 12 | Solder | Polyester Thermoplastic | Gold | 2 | Flush Mount Top Opening Unthreaded | Semi Bellows | -40 °C | 105 ░C | 3.96 mm | 0.156 in | Panel Mount Through Hole | |
EDAC Inc. | Non Specified - Dual Edge | Black | Female | Dual | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 24 | 10 Áin | 0.25 Ám | 2 | 12 | Solder | Polyester Thermoplastic | Gold | 2 | Flush Mount Top Opening Unthreaded | Semi Bellows | -40 °C | 105 ░C | 3.25 mm | 0.128 " | Panel Mount Through Hole | |
EDAC Inc. | Non Specified - Dual Edge | Black | Female | Dual | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 24 | 10 Áin | 0.25 Ám | 2 | 12 | Solder | Polyester Thermoplastic | Gold | 2 | Floating Bobbin Flush Mount | Semi Bellows | -40 °C | 105 ░C | 2.95 mm | 0.116 in | Panel Mount Through Hole | |
EDAC Inc. | Non Specified - Dual Edge | Black | Female | Dual | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 24 | 10 Áin | 0.25 Ám | 2 | 12 | Solder | Polyester Thermoplastic | Gold | 2 | Flush Mount Top Opening Unthreaded | Semi Bellows | -40 °C | 105 ░C | 3.96 mm | 0.156 in | Card Extender | Board Edge Straddle Mount |
EDAC Inc. | Non Specified - Dual Edge | Black | Female | Dual | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 24 | 10 Áin | 0.25 Ám | 2 | 12 | Solder Eyelet(s) | Polyester Thermoplastic | Gold | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Semi Bellows | -40 °C | 105 ░C | ||||
EDAC Inc. | Non Specified - Dual Edge | Black | Female | Dual | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 24 | 10 Áin | 0.25 Ám | 2 | 12 | Solder | Polyester Thermoplastic | Gold | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Semi Bellows | -40 °C | 105 ░C | Panel Mount Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 8.25 | |
Description
General part information
355-024 Series
24 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
Documents
Technical documentation and resources
