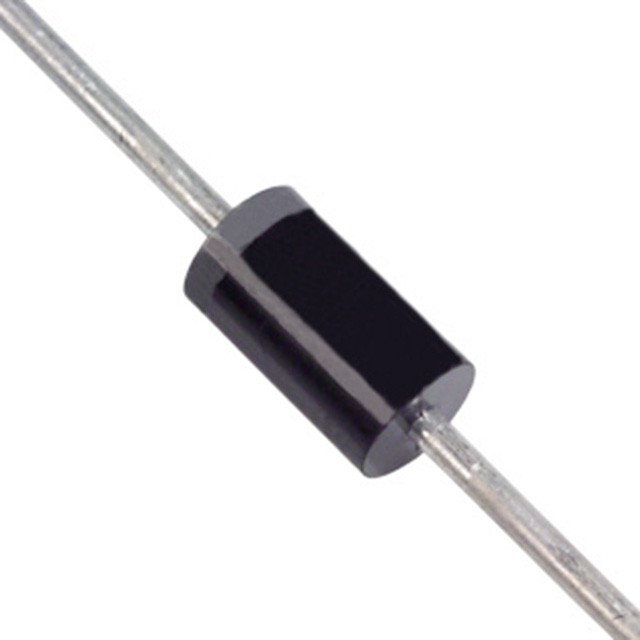

1N5402G-T

Active

Diodes Inc

RECTIFIER DIODE, 1 PHASE, 1 ELEMENT, 3A, 200V V(RRM), SILICON, DO-201AD, ROHS COMPLIANT, PLASTIC PACKAGE-2

Search across all available documentation for this part.

Active

Diodes Inc

RECTIFIER DIODE, 1 PHASE, 1 ELEMENT, 3A, 200V V(RRM), SILICON, DO-201AD, ROHS COMPLIANT, PLASTIC PACKAGE-2

Technical Specifications

Parameters and characteristics for this part

Specification	1N5402G-T

Capacitance @ Vr, F	40 pF
Current - Average Rectified (Io)	3 A
Current - Reverse Leakage @ Vr	5 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-65 C
Package / Case	DO-201AD, Axial
Reverse Recovery Time (trr)	2 µs
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	DO-201AD
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	200 V
Voltage - Forward (Vf) (Max) @ If	1.1 V

standard rectifier

Part	Technology	Speed	Speed	Package / Case	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Reverse Leakage @ Vr	Mounting Type	Current - Average Rectified (Io)	Capacitance @ Vr, F	Voltage - DC Reverse (Vr) (Max) [Max]	Reverse Recovery Time (trr)
Diodes Inc 1N5402-B	Standard	Standard Recovery >500ns	200 mA	DO-201AD Axial	DO-201AD	1 V	150 °C	-65 C	10 µA	Through Hole	3 A	50 pF	200 V
Diodes Inc 1N5402	Standard	Standard Recovery >500ns	200 mA	DO-201AD Axial	DO-201AD	1.2 V	125 °C	-55 °C	10 µA	Through Hole	3 A	50 pF	200 V
Diodes Inc 1N5402G-T	Standard	Standard Recovery >500ns	200 mA	DO-201AD Axial	DO-201AD	1.1 V	150 °C	-65 C	5 µA	Through Hole	3 A	40 pF	200 V	2 µs
