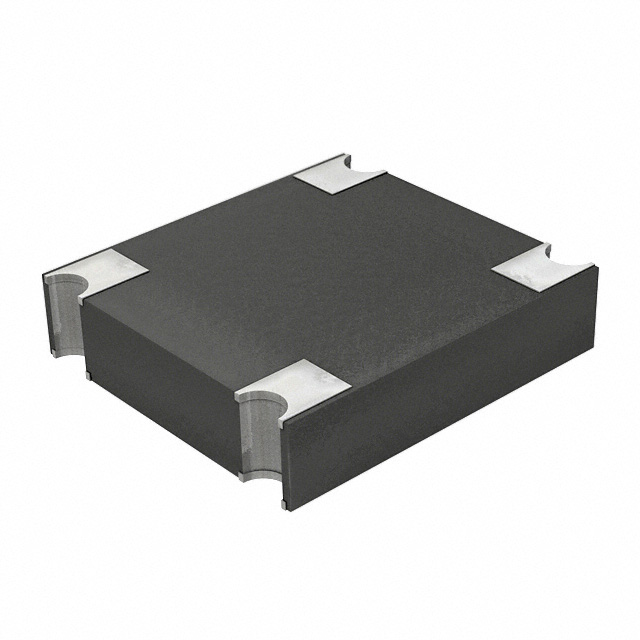

Z4GP208L-HF
ActiveComchip Technology
BRIDGE RECT 1PHASE 800V 2A ABS
Deep-Dive with AI
Search across all available documentation for this part.
Z4GP208L-HF
ActiveComchip Technology
BRIDGE RECT 1PHASE 800V 2A ABS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Z4GP208L-HF |
|---|---|
| Current - Average Rectified (Io) | 2 A |
| Current - Reverse Leakage @ Vr | 5 µA |
| Diode Type | Single Phase |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 175 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 4-SMD, No Lead |
| Supplier Device Package | ABS(Z4) |
| Technology | Standard |
| Voltage - Forward (Vf) (Max) @ If | 950 mV |
| Voltage - Peak Reverse (Max) [Max] | 800 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.89 | |
| 10 | $ 0.77 | |||
| 100 | $ 0.54 | |||
| 500 | $ 0.45 | |||
| 1000 | $ 0.38 | |||
| 2000 | $ 0.34 | |||
| Digi-Reel® | 1 | $ 0.89 | ||
| 10 | $ 0.77 | |||
| 100 | $ 0.54 | |||
| 500 | $ 0.45 | |||
| 1000 | $ 0.38 | |||
| 2000 | $ 0.34 | |||
| Tape & Reel (TR) | 5000 | $ 0.32 | ||
| 10000 | $ 0.30 | |||
| 25000 | $ 0.29 | |||
Description
General part information
Z4GP208 Series
Bridge Rectifier Single Phase Standard 800 V Surface Mount ABS(Z4)
Documents
Technical documentation and resources
No documents available
