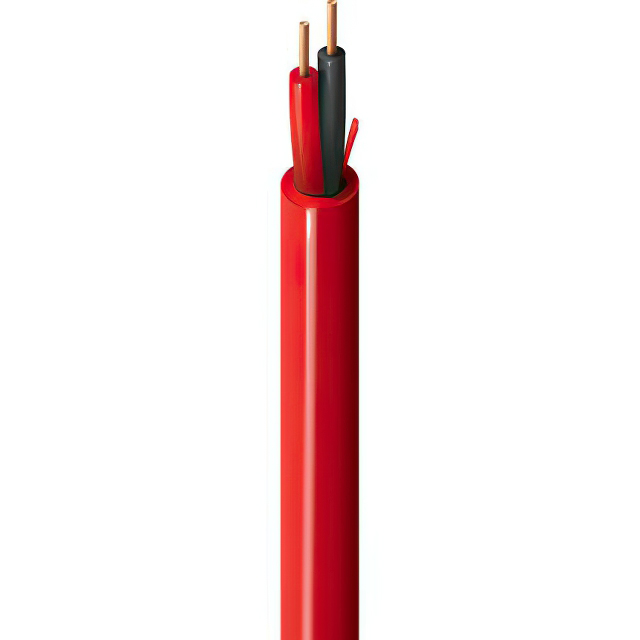

6120UL 002500
ActiveBelden Inc.
MULTI-CONDUCTOR CABLES 2 #14 FLRST FLRST
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6120UL 002500
ActiveBelden Inc.
MULTI-CONDUCTOR CABLES 2 #14 FLRST FLRST
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 6120UL 002500 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Low Smoke Poly-Vinyl Chloride (LSPVC) |
| Conductor Material | Copper, Bare |
| Conductor Strand | Solid |
| Features | Rip Cord |
| Jacket (Insulation) Diameter [diameter] | 5.11 mm |
| Jacket (Insulation) Diameter [diameter] | 0.201 in |
| Jacket (Insulation) Material | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum |
| Jacket (Insulation) Thickness | 0.015 in |
| Jacket (Insulation) Thickness | 0.381 mm |
| Jacket Color | Red |
| Length [x] | 500 ' |
| Length [x] | 152.4 m |
| Number of Conductors | 2 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | 0 °C |
| Ratings | UL Style FPLP |
| Usage | Alarm, Safety |
| Voltage | 300 V |
| Wire Gauge | 13.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 500 | $ 0.46 | |
| 1000 | $ 0.44 | |||
| 2500 | $ 0.41 | |||
| 5000 | $ 0.39 | |||
| 12500 | $ 0.37 | |||
| 25000 | $ 0.37 | |||
Description
General part information
6120UL Series
2 Conductor Multi-Conductor Cable Red 14 AWG 500.0' (152.4m)
