EEM02DRUN

Active

Sullins Connector Solutions

CONN EDGE DUAL FMALE 4POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

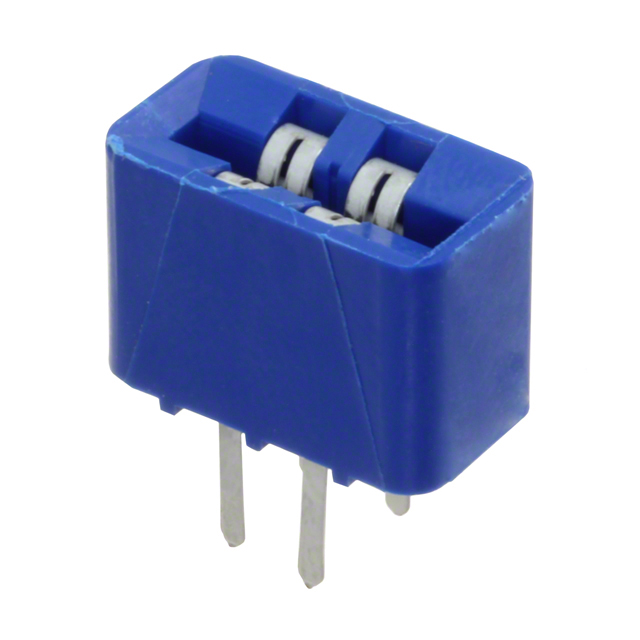

EEM02DRUN

Active

Sullins Connector Solutions

CONN EDGE DUAL FMALE 4POS 0.156

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EEM02DRUN

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Non Specified - Dual Edge
Color	Blue
Contact Finish	Tin
Contact Finish Thickness	2.54 µm
Contact Finish Thickness	100 µin
Contact Material	Phosphor Bronze
Contact Type	Full Bellows
Gender	Female
Material - Insulation	Polybutylene Terephthalate (PBT)
Mounting Type	Through Hole
Number of Positions	4
Number of Positions/Bay/Row [custom]	2
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder

EEM02 Series

Part	Contact Type	Contact Finish	Mounting Type	Read Out	Contact Material	Number of Positions/Bay/Row [custom]	Termination	Number of Rows	Card Thickness	Card Thickness	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Card Type	Operating Temperature [Max]	Operating Temperature [Min]	Color	Number of Positions	Material - Insulation	Gender	Features
Sullins Connector Solutions EEM02DRTN	Full Bellows	Tin	Through Hole	Dual	Phosphor Bronze	2	Solder	2	0.062 in	1.57 mm	0.156 in	3.96 mm	2.54 µm	100 µin	Non Specified - Dual Edge	125 °C	-65 ░C	Blue	4	Polybutylene Terephthalate (PBT)	Female
Sullins Connector Solutions EEM02DRXN	Full Bellows	Tin	Through Hole	Dual	Phosphor Bronze	2	Solder	2	0.062 in	1.57 mm	0.156 in	3.96 mm	2.54 µm	100 µin	Non Specified - Dual Edge	125 °C	-65 ░C	Blue	4	Polybutylene Terephthalate (PBT)	Female
Sullins Connector Solutions EEM02DRUN	Full Bellows	Tin	Through Hole	Dual	Phosphor Bronze	2	Solder	2	0.062 in	1.57 mm	0.156 in	3.96 mm	2.54 µm	100 µin	Non Specified - Dual Edge	125 °C	-65 ░C	Blue	4	Polybutylene Terephthalate (PBT)	Female
Sullins Connector Solutions EEM02DSEN	Full Bellows	Tin	Free Hanging (In-Line)	Dual	Phosphor Bronze	2	Solder Eyelet(s)	2	0.062 in	1.57 mm	0.156 in	3.96 mm	2.54 µm	100 µin	Non Specified - Dual Edge	125 °C	-65 ░C	Blue	4	Polybutylene Terephthalate (PBT)	Female
Sullins Connector Solutions EEM02DRTN-S13	Full Bellows	Tin	Board Edge Straddle Mount	Dual	Phosphor Bronze	2	Solder	2	0.062 in	1.57 mm	0.156 in	3.96 mm	2.54 µm	100 µin	Non Specified - Dual Edge	125 °C	-65 ░C	Blue	4	Polybutylene Terephthalate (PBT)	Female	Card Extender
Sullins Connector Solutions EEM02DSEN-S243	Full Bellows	Tin	Free Hanging (In-Line)	Single	Phosphor Bronze	2	Solder Eyelet(s)	2	0.062 in	1.57 mm	0.156 in	3.96 mm	2.54 µm	100 µin	Non Specified - Dual Edge	125 °C	-65 ░C	Blue	4	Polybutylene Terephthalate (PBT)	Female
Sullins Connector Solutions EEM02DREN	Full Bellows	Tin	Free Hanging (In-Line)	Dual	Phosphor Bronze	2	Solder Eyelet(s)	2	0.062 in	1.57 mm	0.156 in	3.96 mm	2.54 µm	100 µin	Non Specified - Dual Edge	125 °C	-65 ░C	Blue	4	Polybutylene Terephthalate (PBT)	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.11
		10	$ 2.82
		30	$ 2.67
		40	$ 2.61
		80	$ 2.48
		230	$ 2.17
		440	$ 2.11
		950	$ 1.80
		2400	$ 1.68

Description

General part information

EEM02 Series

4 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Blue
