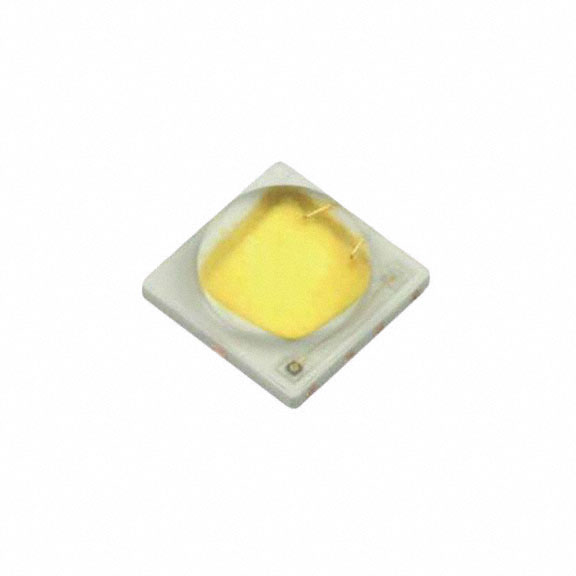

TL1L4-NW1,L
ObsoleteToshiba Semiconductor and Storage
LED LETERAS COOL WHT 5000K 2SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TL1L4-NW1,L |
|---|---|
| CCT (K) | 5000 K |
| Color | Cool, White |
| CRI (Color Rendering Index) | 80 |
| Current - Max [Max] | 1.5 A |
| Current - Test | 350 mA |
| Flux @ 85°C, Current - Test | 135 lm |
| Lumens/Watt @ Current - Test | 138 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 3535 Metric |
| Package / Case | 1414 |
| Size / Dimension [x] | 3.5 mm |
| Size / Dimension [x] | 0.138 in |
| Size / Dimension [y] | 3.5 mm |
| Size / Dimension [y] | 0.138 in |
| Supplier Device Package | 3535 |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TL1L4 Series
LED Lighting LETERAS™ White, Cool 5000K 2.8V 350mA 120° 1414 (3535 Metric)
