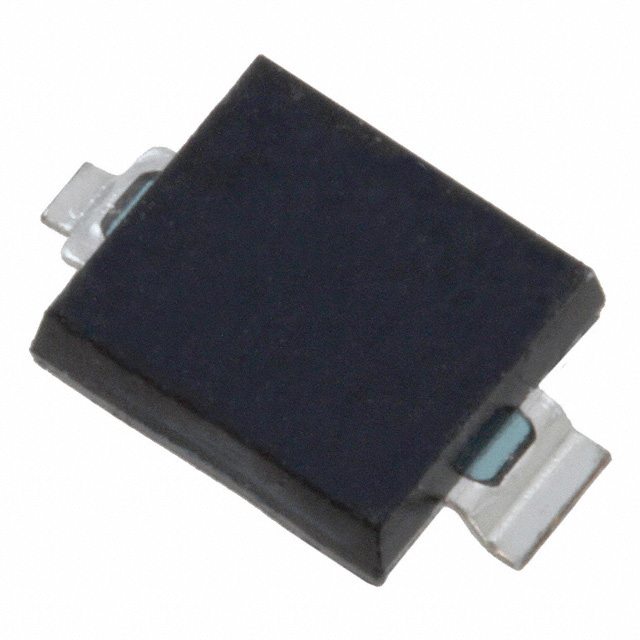

ODD-8SMD-DF
ObsoleteOpto Diode Corp
SENSOR PHOTODIODE 940NM LOCAP
Deep-Dive with AI
Search across all available documentation for this part.
ODD-8SMD-DF
ObsoleteOpto Diode Corp
SENSOR PHOTODIODE 940NM LOCAP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ODD-8SMD-DF |
|---|---|
| Active Area | 8 mm˛ |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Response Time | 50 ns |
| Responsivity @ nm | 0.44 A/W |
| Spectral Range [Max] [custom] | 1100 nm |
| Spectral Range [Min] [custom] | 730 nm |
| Voltage - DC Reverse (Vr) (Max) [Max] | 170 V |
| Wavelength | 940 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ODD-8 Series
Photodiode 940nm 50ns
Documents
Technical documentation and resources
No documents available
