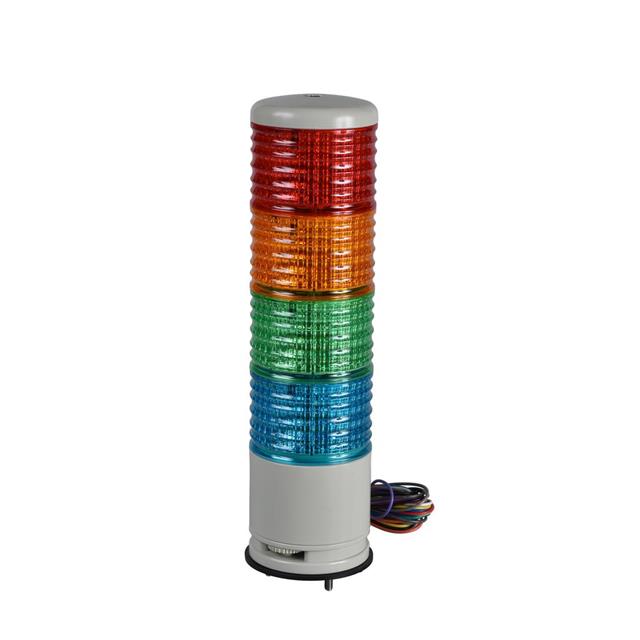

XVC6B45SK

Active

SQUARE D BY SCHNEIDER ELECTRIC

60MM TOWER ROGB BASE MOUNT BUZZER FLASH ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

60MM TOWER ROGB BASE MOUNT BUZZER FLASH ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	XVC6B45SK

Function - Lighting	Steady, Flashing
Ingress Protection	IP54 - Dust Protected, Water Resistant
Light Color	Orange, Green, Blue, Red
Number of Stacks	4
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Termination Style	Wire Leads
Type	Complete Unit
Voltage - Supply	24 VAC
Weight	349.27 g
Weight	0.77 lb

Part	Ingress Protection	Number of Stacks	Voltage - Supply	Termination Style	Light Color	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Function - Lighting	Weight	Weight	Type
SQUARE D BY SCHNEIDER ELECTRIC XVC6B5	IP23	5	24 VAC	Wire Leads	Blue Clear Green Orange Red	-10 °C	50 °C	Steady	861.8 g	1.9 lbs	Complete Unit
SQUARE D BY SCHNEIDER ELECTRIC XVC6B15SK	IP54 - Dust Protected Water Resistant	1	24 VAC	Wire Leads	Red	-10 °C	50 °C	Flashing Steady	217.72 g	0.48 lb	Complete Unit
SQUARE D BY SCHNEIDER ELECTRIC XVC6B25S	IP23	2	24 VAC	Wire Leads	Orange Red	-10 °C	50 °C	Flashing Steady			Complete Unit
SQUARE D BY SCHNEIDER ELECTRIC XVC6B25SK	IP54 - Dust Protected Water Resistant	2	24 VAC	Wire Leads	Orange Red	-10 °C	50 °C	Flashing Steady	249.48 g	0.55 lb	Complete Unit
SQUARE D BY SCHNEIDER ELECTRIC XVC6B5K	IP54 - Dust Protected Water Resistant	5	24 VAC	Wire Leads	Blue Clear Green Orange Red	-10 °C	50 °C	Steady			Complete Unit
SQUARE D BY SCHNEIDER ELECTRIC XVC6B45SK	IP54 - Dust Protected Water Resistant	4	24 VAC	Wire Leads	Blue Green Orange Red	-10 °C	50 °C	Flashing Steady	349.27 g	0.77 lb	Complete Unit
SQUARE D BY SCHNEIDER ELECTRIC XVC6B55S	IP23	5	24 VAC	Wire Leads	Blue Clear Green Orange Red	-10 °C	50 °C	Flashing Steady			Complete Unit

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Stack Light Complete Unit Blue, Green, Orange, Red LED Wire Leads
