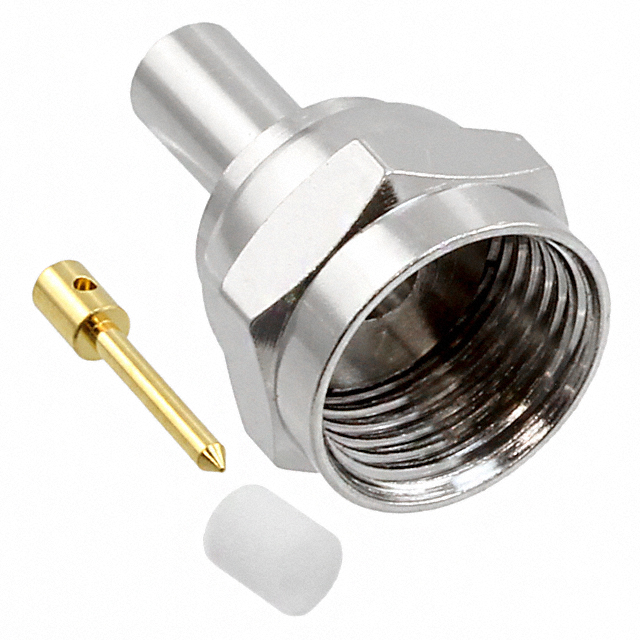

VF10-2061
ActiveCinch Connectivity Solutions Trompeter
CONN F PLUG STR CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
VF10-2061
ActiveCinch Connectivity Solutions Trompeter
CONN F PLUG STR CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VF10-2061 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | RG-179 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | F Type |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 2 GHz |
| Housing Color | Silver |
| Impedance | Non-Constant |
| Includes | Insulator, Connector, Contact |
| Insertion Loss | 0.2 dB |
| Mating Cycles | 50 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.12 | |
| 10 | $ 2.65 | |||
| 25 | $ 2.48 | |||
| 50 | $ 2.36 | |||
| 100 | $ 2.25 | |||
| 300 | $ 2.08 | |||
| 500 | $ 2.01 | |||
| 1000 | $ 1.91 | |||
| 2500 | $ 1.79 | |||
Description
General part information
VF10 Series
F Type Connector Plug, Male Pin Non-Constant Free Hanging (In-Line) Crimp
Documents
Technical documentation and resources
No documents available
