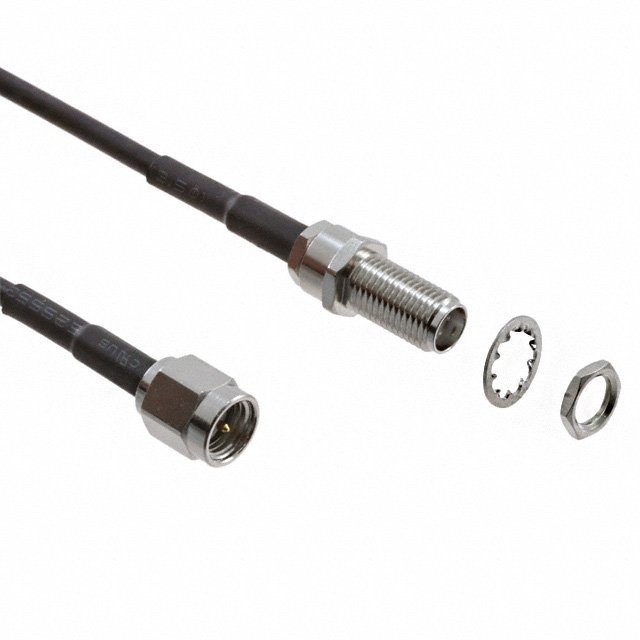

CBL ASSY SMA JACK TO PLUG 8.5"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CSA-SMAM-216-SAFB
ActiveTE Connectivity Linx
CBL ASSY SMA JACK TO PLUG 8.5"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CSA-SMAM-216-SAFB |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-174 |
| Color | Black |
| Features | Shielded |
| Style | SMA to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.94 | |
| 500 | $ 11.01 | |||
Description
General part information
CSA-SMAM Series
Cable Assembly Coaxial SMA to SMA RG-174 8.500" (215.90mm)
