10064-26-1-0500-005-1-TS

Active

CnC Tech, LLC

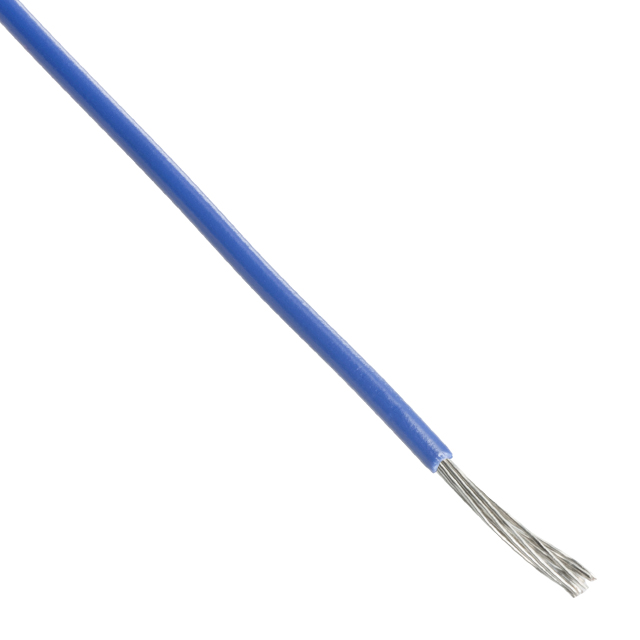

HOOK-UP STRND 26AWG 30V BLU FEET

Search across all available documentation for this part.

Active

CnC Tech, LLC

HOOK-UP STRND 26AWG 30V BLU FEET

Technical Specifications

Parameters and characteristics for this part

Specification	10064-26-1-0500-005-1-TS

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [x]	7
Conductor Strand [y]	0.0063 in
Jacket (Insulation) Diameter [diameter]	0.69 mm
Jacket (Insulation) Diameter [diameter]	0.027 in
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP)
Jacket (Insulation) Thickness	0.004 in
Jacket (Insulation) Thickness	0.09 mm
Jacket Color	Blue
Length	Enter Number of Feet in Order Quantity
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-80 °C
Spool Size	500 '
Spool Size	152.4 m
Voltage	30 V
Wire Gauge	26 AWG

Part	Wire Gauge	Cable Type	Jacket (Insulation) Material	Conductor Material	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Spool Size	Spool Size	Conductor Strand [x]	Conductor Strand [y]	Voltage	Conductor Strand [custom]	Conductor Strand
CnC Tech, LLC 10064-26-1-0500-005-1-TS	26 AWG	Hook-Up	Fluorinated Ethylene-Propylene (FEP)	Copper Tinned	Blue	-80 °C	105 ░C	0.69 mm	0.027 in	Enter Number of Feet in Order Quantity	0.004 in	0.09 mm	500 '	152.4 m	7	0.0063 in	30 V
CnC Tech, LLC 10064-26-1-0500-012-1-TS	26 AWG	Hook-Up	Fluorinated Ethylene-Propylene (FEP)	Copper Tinned	Gray	-80 °C	105 ░C	0.69 mm	0.027 in	Enter Number of Feet in Order Quantity	0.006 in	0.15 mm	500 '	152.4 m			30 V	7	0.005 in
CnC Tech, LLC 10064-26-1-0500-002-1-TS	26 AWG	Hook-Up	Fluorinated Ethylene-Propylene (FEP)	Copper Tinned		-80 °C	105 ░C	0.69 mm	0.027 in	Enter Number of Feet in Order Quantity	0.004 in	0.09 mm	500 '	152.4 m	7	0.0063 in	30 V
CnC Tech, LLC 10064-26-1-0500-008-1-TS	26 AWG	Hook-Up	Fluorinated Ethylene-Propylene (FEP)	Copper Tinned	Orange	-80 °C	105 ░C	0.69 mm	0.027 in	Enter Number of Feet in Order Quantity	0.004 in	0.09 mm	500 '	152.4 m	7	0.0063 in	30 V
CnC Tech, LLC 10064-26-1-0500-003-1-TS	26 AWG	Hook-Up	Fluorinated Ethylene-Propylene (FEP)	Copper Tinned	Yellow	-80 °C	105 ░C	0.69 mm	0.027 in	Enter Number of Feet in Order Quantity	0.004 in	0.09 mm	500 '	152.4 m	7	0.0063 in	30 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

26 AWG Hook-Up Wire 7/0.0063" Blue 30V Enter Number of Feet in Order Quantity
