CBM-5020V-148

Obsolete

CUI Devices

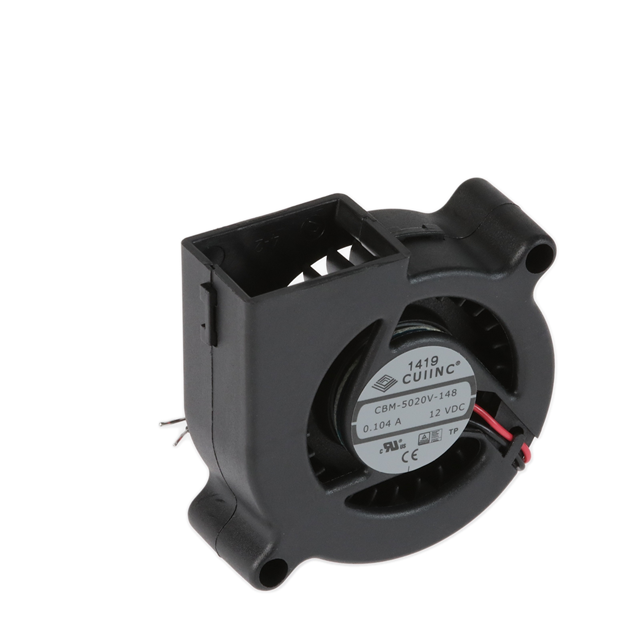

FAN BLOWER 50X20MM 12VDC WIRE

Search across all available documentation for this part.

Obsolete

CUI Devices

FAN BLOWER 50X20MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	CBM-5020V-148

Air Flow	5.2 CFM
Air Flow	0.146 mł/min
Approval Agency	cURus, CE, TUV
Current Rating (Amps)	0.104 A
Fan Type	Blower
Features	Auto Restart
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	33 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	1.3 W
RPM	4800 RPM
Size / Dimension	Square/Rounded
Size / Dimension [x]	50 mm
Size / Dimension [z]	50 mm
Static Pressure	0.56 in H2O
Static Pressure	139.5 Pa
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	6 VDC
Weight	33.11 g
Weight	0.073 lb
Width [y]	20 mm

Part	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Material - Blade	Approval Agency	Voltage Range [Max]	Voltage Range [Min]	Lifetime @ Temp.	Termination	Weight	Weight	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	RPM	Air Flow	Air Flow	Features	Fan Type	Noise	Current Rating (Amps)	Static Pressure	Static Pressure	Width [y]	Power (Watts)	Voltage - Rated
CUI Devices CBM-5020V-152	70 °C	70 °C	-10 °C	-10 °C	Polybutylene Terephthalate (PBT)	CE cURus TUV	13.8 VDC	6 VDC	70000 Hrs	2 Wire Leads	33.11 g	0.073 lb	50 mm	Square/Rounded	50 mm	5200 RPM	5.7 CFM	0.16 m³/min	Auto Restart	Blower	35 dB	0.124 A	0.66 in H2O	164.4 Pa	20 mm	1.5 W	12 VDC
CUI Devices CBM-5020V-148	70 °C	70 °C	-10 °C	-10 °C	Polybutylene Terephthalate (PBT)	CE cURus TUV	13.8 VDC	6 VDC	70000 Hrs	2 Wire Leads	33.11 g	0.073 lb	50 mm	Square/Rounded	50 mm	4800 RPM	5.2 CFM	0.146 mł/min	Auto Restart	Blower	33 dB(A)	0.104 A	0.56 in H2O	139.5 Pa	20 mm	1.3 W	12 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Blower 12VDC Square/Rounded - 50mm L x 50mm H omniCOOL™ Magnetic Sleeve 5.2 CFM (0.146mł/min) 2 Wire Leads
