M20-8770642R
ActiveHarwin Inc.

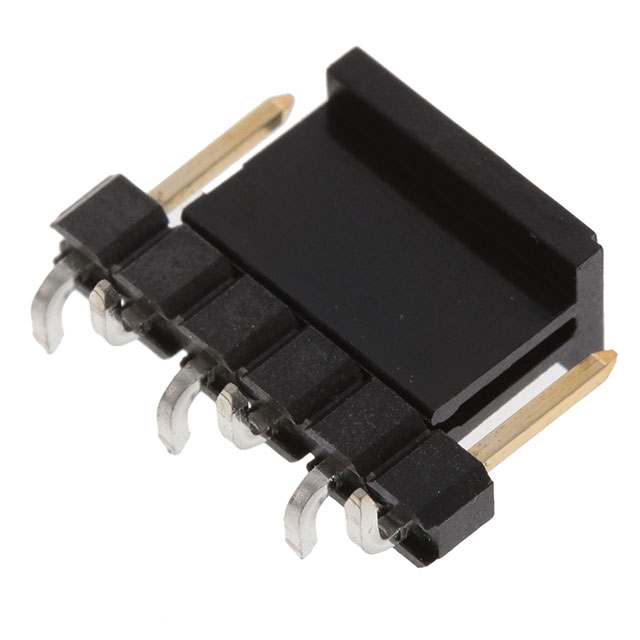

CONNECTOR, HEADER, 6POS, 2.54MM, 1ROW
Deep-Dive with AI
Search across all available documentation for this part.
M20-8770642R
ActiveHarwin Inc.
CONNECTOR, HEADER, 6POS, 2.54MM, 1ROW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M20-8770642R |
|---|---|
| Connector Type | Cuttable, Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 0.228 in |
| Contact Length - Mating | 5.8 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.1 in |
| Insulation Height | 2.54 mm |
| Insulation Material | Nylon 6T, Polyamide (PA6T) |
| Mated Stacking Heights | 18.13 mm, 12.63 mm, 12.23 mm, 11.63 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
M20-877 Series
...
| Part | Insulation Color | Connector Type | Contact Material | Current Rating (Amps) | Material Flammability Rating | Termination | Mated Stacking Heights | Contact Finish - Post | Contact Length - Mating | Contact Length - Mating | Insulation Height | Insulation Height | Contact Shape | Number of Positions Loaded | Insulation Material | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Fastening Type | Mounting Type | Style | Pitch - Mating | Pitch - Mating | Shrouding | Number of Positions | Features | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Black | Cuttable Header | Brass | 3 A | UL94 V-0 | Solder | 11.63 mm 12.23 mm 12.63 mm 18.13 mm | Tin | 0.228 in | 5.8 mm | 0.1 in | 2.54 mm | Square | All | Nylon 6T Polyamide (PA6T) | Male Pin | -40 °C | 105 ░C | 1 | Push-Pull | Surface Mount | Board to Board Cable | 0.1 in | 2.54 mm | Unshrouded | |||
Harwin Inc. | Black | Cuttable Header | Brass | 3 A | UL94 V-0 | Solder | 11.63 mm 12.23 mm 12.63 mm 18.13 mm | Tin | 0.228 in | 5.8 mm | 0.1 in | 2.54 mm | Square | All | Nylon 6T Polyamide (PA6T) | Male Pin | -40 °C | 105 ░C | 1 | Push-Pull | Surface Mount | Board to Board Cable | 0.1 in | 2.54 mm | Unshrouded | 10 | ||
Harwin Inc. | Black | Cuttable Header | Brass | 3 A | UL94 V-0 | Solder | 11.63 mm 12.23 mm 12.63 mm 18.13 mm | Tin | 0.228 in | 5.8 mm | 0.1 in | 2.54 mm | Square | All | Nylon 6T Polyamide (PA6T) | Male Pin | -40 °C | 105 ░C | 1 | Push-Pull | Surface Mount | Board to Board Cable | 0.1 in | 2.54 mm | Unshrouded | 10 | Pick and Place | Gold |
Harwin Inc. | Black | Cuttable Header | Brass | 3 A | UL94 V-0 | Solder | 11.63 mm 12.23 mm 12.63 mm 18.13 mm | Tin | 0.228 in | 5.8 mm | 0.1 in | 2.54 mm | Square | All | Nylon 6T Polyamide (PA6T) | Male Pin | -40 °C | 105 ░C | 1 | Push-Pull | Surface Mount | Board to Board Cable | 0.1 in | 2.54 mm | Unshrouded | 6 | Pick and Place | Gold |
Harwin Inc. | Black | Cuttable Header | Brass | 3 A | UL94 V-0 | Solder | 11.63 mm 12.23 mm 12.63 mm 18.13 mm | Tin | 0.228 in | 5.8 mm | 0.1 in | 2.54 mm | Square | All | Nylon 6T Polyamide (PA6T) | Male Pin | -40 °C | 105 ░C | 1 | Push-Pull | Surface Mount | Board to Board Cable | 0.1 in | 2.54 mm | Unshrouded | 6 | ||
Harwin Inc. | Black | Cuttable Header | Brass | 3 A | UL94 V-0 | Solder | 11.63 mm 12.23 mm 12.63 mm 18.13 mm | Tin | 0.228 in | 5.8 mm | 0.1 in | 2.54 mm | Square | All | Nylon 6T Polyamide (PA6T) | Male Pin | -40 °C | 105 ░C | 1 | Push-Pull | Surface Mount | Board to Board Cable | 0.1 in | 2.54 mm | Unshrouded | 27 | ||
Harwin Inc. | Black | Cuttable Header | Brass | 3 A | UL94 V-0 | Solder | 11.63 mm 12.23 mm 12.63 mm 18.13 mm | Tin | 0.228 in | 5.8 mm | 0.1 in | 2.54 mm | Square | All | Nylon 6T Polyamide (PA6T) | Male Pin | -40 °C | 105 ░C | 1 | Push-Pull | Surface Mount | Board to Board Cable | 0.1 in | 2.54 mm | Unshrouded | 22 positions | Pick and Place | Gold |
Harwin Inc. | Black | Cuttable Header | Brass | 3 A | UL94 V-0 | Solder | 11.63 mm 12.23 mm 12.63 mm 18.13 mm | Tin | 0.228 in | 5.8 mm | 0.1 in | 2.54 mm | Square | All | Nylon 6T Polyamide (PA6T) | Male Pin | -40 °C | 105 ░C | 1 | Push-Pull | Surface Mount | Board to Board Cable | 0.1 in | 2.54 mm | Unshrouded | 15 | Gold | |
Harwin Inc. | Black | Cuttable Header | Brass | 3 A | UL94 V-0 | Solder | 11.63 mm 12.23 mm 12.63 mm 18.13 mm | Tin | 0.228 in | 5.8 mm | 0.1 in | 2.54 mm | Square | All | Nylon 6T Polyamide (PA6T) | Male Pin | -40 °C | 105 ░C | 1 | Push-Pull | Surface Mount | Board to Board Cable | 0.1 in | 2.54 mm | Unshrouded | |||
Harwin Inc. | Black | Cuttable Header | Brass | 3 A | UL94 V-0 | Solder | 11.63 mm 12.23 mm 12.63 mm 18.13 mm | Tin | 0.228 in | 5.8 mm | 0.1 in | 2.54 mm | Square | All | Nylon 6T Polyamide (PA6T) | Male Pin | -40 °C | 105 ░C | 1 | Push-Pull | Surface Mount | Board to Board Cable | 0.1 in | 2.54 mm | Unshrouded | 6 | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M20-877 Series
Connector Header Surface Mount 6 position 0.100" (2.54mm)
