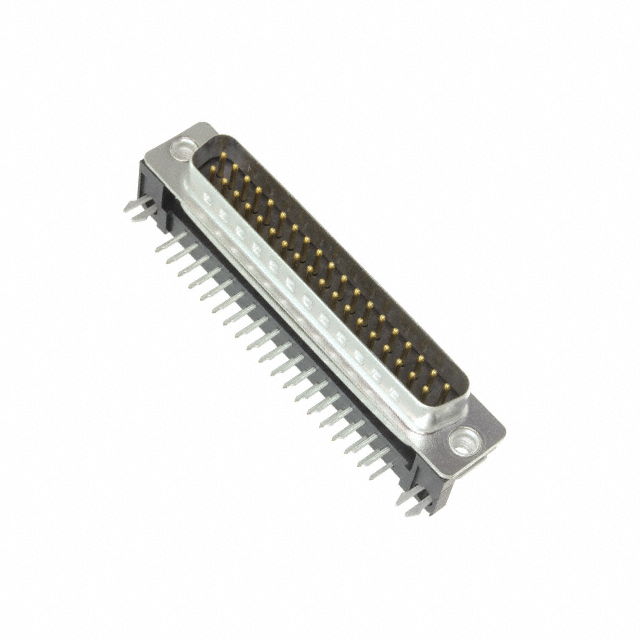

FCE17C37PA440

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 37POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FCE17C37PA440

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 37POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FCE17C37PA440

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Filter, Grounding Indents, Board Lock
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shell Size, Connector Layout	4 (DC, C)
Termination	Solder

FCE17C37 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Features	Flange Feature	Contact Finish	Shell Size, Connector Layout	Connector Style	Dielectric Material	Connector Type	Mounting Type	Contact Type	Number of Positions	Contact Material	Color	Current Rating (Amps)	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Termination	Backset Spacing	Backset Spacing
Amphenol ICC (Commercial Products) FCE17C37PM210	15 µin	0.38 µm	Filter Grounding Indents	Housing/Shell (Unthreaded)	Gold	4 (DC C)	D-Sub	Thermoplastic Glass Filled	Male Pins Plug	Free Hanging (In-Line)	Signal	37	Phosphor Bronze	Black	5 A	UL94 V-0	85 °C	-40 °C	2
Amphenol ICC (Commercial Products) FCE17C37PE200	15 µin	0.38 µm	Filter Grounding Indents	Housing/Shell (Unthreaded)	Gold	4 (DC C)	D-Sub	Thermoplastic Glass Filled	Male Pins Plug	Through Hole	Signal	37	Phosphor Bronze	Black	5 A	UL94 V-0	85 °C	-40 °C	2	Solder
Amphenol ICC (Commercial Products) FCE17C37SM2E0	15 µin	0.38 µm	Filter	Housing/Shell (Unthreaded)	Gold	4 (DC C)	D-Sub	Thermoplastic Glass Filled	Receptacle Female Sockets	Free Hanging (In-Line)	Signal	37	Phosphor Bronze	Black	5 A	UL94 V-0	85 °C	-40 °C	2
Amphenol ICC (Commercial Products) FCE17C37PA440	15 µin	0.38 µm	Board Lock Filter Grounding Indents	Housing/Shell (4-40)	Gold	4 (DC C)	D-Sub	Thermoplastic Glass Filled	Male Pins Plug	Through Hole Right Angle	Signal	37	Phosphor Bronze	Black	5 A	UL94 V-0	85 °C	-40 °C	2	Solder	8.08 mm	0.318 "
Amphenol ICC (Commercial Products) FCE17C37PM250	15 µin	0.38 µm	Filter Grounding Indents	Housing/Shell (Unthreaded)	Gold	4 (DC C)	D-Sub	Thermoplastic Glass Filled	Male Pins Plug	Free Hanging (In-Line)	Signal	37	Phosphor Bronze	Black	5 A	UL94 V-0	85 °C	-40 °C	2
Amphenol ICC (Commercial Products) FCE17C37SA280	15 µin	0.38 µm	Board Lock Filter	Housing/Shell (Unthreaded)	Gold	4 (DC C)	D-Sub	Thermoplastic Glass Filled	Receptacle Female Sockets	Through Hole Right Angle	Signal	37	Phosphor Bronze	Black	5 A	UL94 V-0	85 °C	-40 °C	2	Solder	8.08 mm	0.318 "
Amphenol ICC (Commercial Products) FCE17C37PC44B	15 µin	0.38 µm	Filter Grounding Indents Mounting Brackets	4-40 Board Side	Gold	4 (DC C)	D-Sub	Thermoplastic Glass Filled	Male Pins Plug	Through Hole Right Angle	Signal	37	Phosphor Bronze	Black	5 A	UL94 V-0	85 °C	-40 °C	2	Solder	14.99 mm	0.59 "
Amphenol ICC (Commercial Products) FCE17C37SA440	15 µin	0.38 µm	Board Lock Filter	Housing/Shell (4-40)	Gold	4 (DC C)	D-Sub	Thermoplastic Glass Filled	Receptacle Female Sockets	Through Hole Right Angle	Signal	37	Phosphor Bronze	Black	5 A	UL94 V-0	85 °C	-40 °C	2	Solder	8.08 mm	0.318 "
Amphenol ICC (Commercial Products) FCE17C37PE250	15 µin	0.38 µm	Filter Grounding Indents	Housing/Shell (Unthreaded)	Gold	4 (DC C)	D-Sub	Thermoplastic Glass Filled	Male Pins Plug	Through Hole	Signal	37	Phosphor Bronze	Black	5 A	UL94 V-0	85 °C	-40 °C	2	Solder
Amphenol ICC (Commercial Products) FCE17C37PE480	15 µin	0.38 µm	Filter Grounding Indents	4-40 Board Side	Gold	4 (DC C)	D-Sub	Thermoplastic Glass Filled	Male Pins Plug	Through Hole	Signal	37	Phosphor Bronze	Black	5 A	UL94 V-0	85 °C	-40 °C	2	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 28.45
		10	$ 24.91
		25	$ 23.84
		60	$ 23.07
		120	$ 22.30
		300	$ 21.07

Description

General part information

FCE17C37 Series

37 Position D-Sub Plug, Male Pins Connector
