WLS27XDW710HSQ
ActiveBANNER ENGINEERING

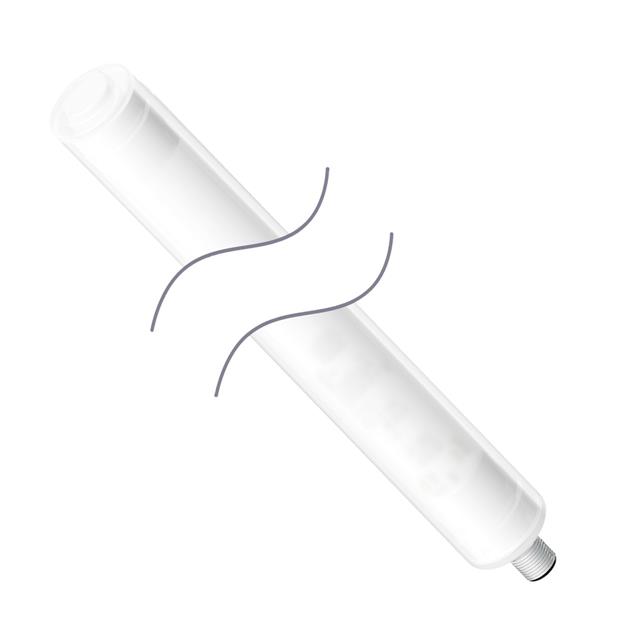

WLS27 WORK LIGHT STRIP; HEAVY DI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WLS27XDW710HSQ
ActiveBANNER ENGINEERING
WLS27 WORK LIGHT STRIP; HEAVY DI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WLS27XDW710HSQ |
|---|---|
| Approval Agency | cULus, CE |
| Housing Material | Aluminum (Al) |
| Illumination Color | White, Cool |
| Ingress Protection | IP69K, IP67, IP66 |
| Length | 27.95 " |
| Length | 710 mm |
| Lens Type | Tubular, Diffused |
| Luminous Flux | 2000 lm |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Profile (W x H) [diameter] | 1.06 in |
| Profile (W x H) [diameter] | 27 mm |
| Termination Style | Connector (M12) |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
WLS27XDW Series
WLS27 WORK LIGHT STRIP; HEAVY DI
