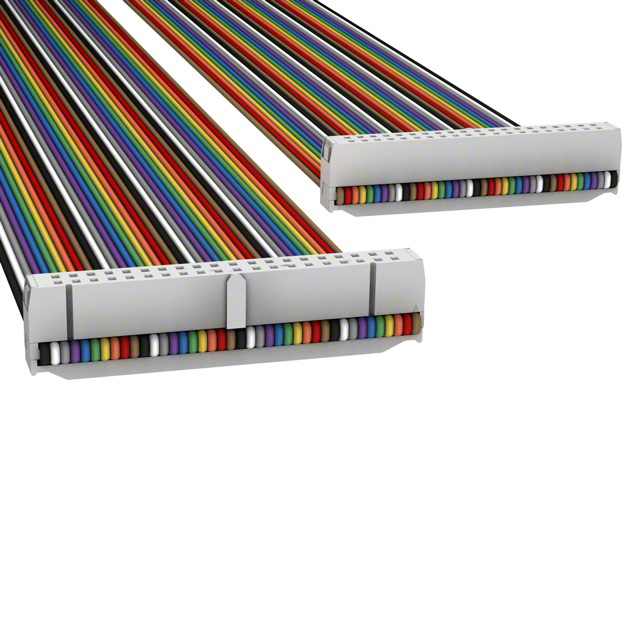

H3DDS-4006M

Active

Assmann WSW Components

IDC CBL - HHKR40S/AE40M/HHKR40S

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHKR40S/AE40M/HHKR40S

Technical Specifications

Parameters and characteristics for this part

Specification	H3DDS-4006M

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Socket to Socket
Contact Finish	Tin
Features	Polarizing Key, Strain Relief
Length	152.4 mm
Length	6 "
Length	0.5 '
Number of Positions	40
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Features	Shielding	Contact Finish	Pitch - Connector	Pitch - Connector	Cable Termination	Connector Type	Number of Rows	Number of Positions	Length [x]	Length [x]	Pitch - Cable	Pitch - Cable	Length	Length	Length	Color
Assmann WSW Components H3DDS-4018G	Polarizing Key Strain Relief	Unshielded	Tin	0.1 in	2.54 mm	IDC	Socket to Socket	2	40	457.2 mm	1.5 ft	0.05 "	1.27 mm
Assmann WSW Components H3DDS-4006M	Polarizing Key Strain Relief	Unshielded	Tin	0.1 in	2.54 mm	IDC	Socket to Socket	2	40			0.05 "	1.27 mm	152.4 mm	6 "	0.5 '	Multiple Ribbon
Assmann WSW Components H3DDS-4036G	Polarizing Key Strain Relief	Unshielded	Tin	0.1 in	2.54 mm	IDC	Socket to Socket	2	40	914.4 mm	3 ft	0.05 "	1.27 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")
