M3CWK-5006J

Active

3M (TC)

IDC CABLE - MKC50K/MC50G/MPL50K

Deep-Dive with AI

Search across all available documentation for this part.

Documents4600 Series Drawing Datasheet +1

M3CWK-5006J

Active

3M (TC)

IDC CABLE - MKC50K/MC50G/MPL50K

Deep-Dive with AI

Documents4600 Series Drawing Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M3CWK-5006J

Cable Termination	IDC
Connector Type	Socket to Plug
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Polarizing Key (Socket), Polarizing Key (Plug), Flange
Length	152.4 mm
Length	6 "
Length	0.5 '
Number of Positions	50
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M3CWK Series

Part	Pitch - Cable	Pitch - Cable	Number of Rows	Connector Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Features	Pitch - Connector	Pitch - Connector	Cable Termination	Shielding	Length	Length	Length	Contact Finish	Color	Length	Length [x]	Length [x]	Number of Positions
3M (TC) M3CWK-1006J	0.05 "	1.27 mm	2	Socket to Plug	10	0.76 Ám	30 Áin	Flange Polarizing Key (Plug) Polarizing Key (Socket)	0.1 in	2.54 mm	IDC	Unshielded	152.4 mm	6 "	0.5 '	Gold
3M (TC) M3CWK-3460K	0.05 "	1.27 mm	2	Socket to Plug	34	0.76 Ám	30 Áin	Flange Polarizing Key (Plug) Polarizing Key (Socket)	0.1 in	2.54 mm	IDC	Unshielded	1.52 m			Gold	Multiple Twisted Pair (Flat)	5 '
3M (TC) M3CWK-1636R	0.05 "	1.27 mm	2	Socket to Plug		0.76 Ám	30 Áin	Flange Polarizing Key (Plug) Polarizing Key (Socket)	0.1 in	2.54 mm	IDC	Unshielded				Gold	Multiple Ribbon		3 ft	914.4 mm	16
3M (TC) M3CWK-3018J	0.05 "	1.27 mm	2	Socket to Plug	30	0.76 Ám	30 Áin	Flange Polarizing Key (Plug) Polarizing Key (Socket)	0.1 in	2.54 mm	IDC	Unshielded				Gold			1.5 ft	457.2 mm
3M (TC) M3CWK-2436R	0.05 "	1.27 mm	2	Socket to Plug	24	0.76 Ám	30 Áin	Flange Polarizing Key (Plug) Polarizing Key (Socket)	0.1 in	2.54 mm	IDC	Unshielded				Gold	Multiple Ribbon		3 ft	914.4 mm
3M (TC) M3CWK-4018J	0.05 "	1.27 mm	2	Socket to Plug	40	0.76 Ám	30 Áin	Flange Polarizing Key (Plug) Polarizing Key (Socket)	0.1 in	2.54 mm	IDC	Unshielded				Gold			1.5 ft	457.2 mm
3M (TC) M3CWK-2036R	0.05 "	1.27 mm	2	Socket to Plug	20	0.76 Ám	30 Áin	Flange Polarizing Key (Plug) Polarizing Key (Socket)	0.1 in	2.54 mm	IDC	Unshielded				Gold	Multiple Ribbon		3 ft	914.4 mm
3M (TC) M3CWK-1020K	0.05 "	1.27 mm	2	Socket to Plug	10	0.76 Ám	30 Áin	Flange Polarizing Key (Plug) Polarizing Key (Socket)	0.1 in	2.54 mm	IDC	Unshielded	508 mm			Gold	Multiple Twisted Pair (Flat)	1.67 ft
3M (TC) M3CWK-5006J	0.05 "	1.27 mm	2	Socket to Plug	50	0.76 Ám	30 Áin	Flange Polarizing Key (Plug) Polarizing Key (Socket)	0.1 in	2.54 mm	IDC	Unshielded	152.4 mm	6 "	0.5 '	Gold
3M (TC) M3CWK-1018R	0.05 "	1.27 mm	2	Socket to Plug	10	0.76 Ám	30 Áin	Flange Polarizing Key (Plug) Polarizing Key (Socket)	0.1 in	2.54 mm	IDC	Unshielded				Gold	Multiple Ribbon		1.5 ft	457.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.05
		10	$ 24.75
		25	$ 22.43
		50	$ 20.86
		100	$ 19.44
		250	$ 17.77
		500	$ 16.64

Description

General part information

M3CWK Series

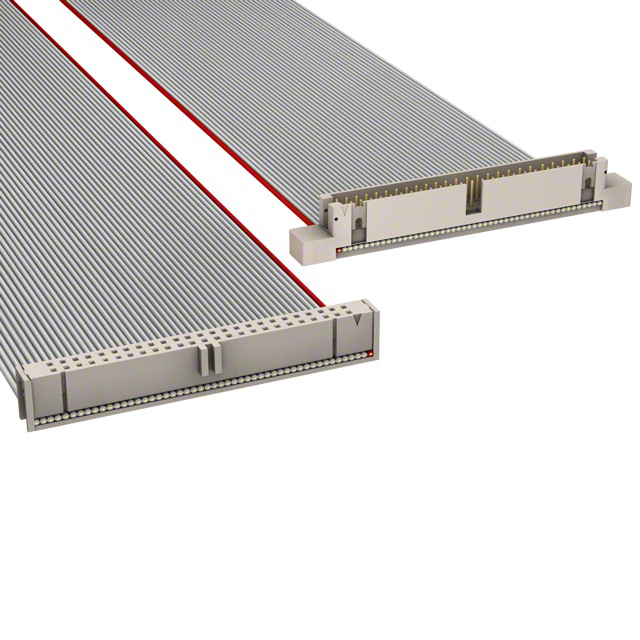

50 Position Cable Assembly Rectangular Socket to Plug 0.500' (152.40mm, 6.00")
