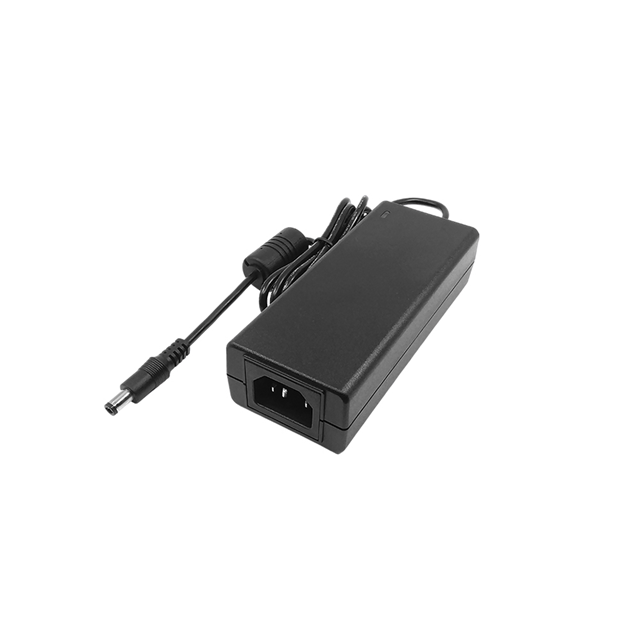

SLE48S1203F01
ActiveSL POWER / Advanced Energy
AC/DC DESKTOP ADAPTER 12V 48W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SLE48S1203F01
ActiveSL POWER / Advanced Energy
AC/DC DESKTOP ADAPTER 12V 48W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SLE48S1203F01 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | KC, cULus, CB, TUV, CE, CSA, CCC, UL, GS, cURus |
| Cord Length | 1.5 m |
| Cord Length | 59 in |
| Current - Output (Max) [Max] | 4 A |
| Efficiency | CoC Tier 2, Level VI |
| Form | Desktop (Class II), Desktop (Class I) |
| Input Connector | IEC 320-C14, IEC 320-C18, IEC 320-C6 |
| Input Type | Cord |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.5 mm |
| Output Connector [x] | 9.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 48 W |
| Region Utilized | International |
| Size / Dimension [x] | 122 mm |
| Size / Dimension [x] | 4.8 in |
| Size / Dimension [y] | 2.01 in |
| Size / Dimension [y] | 51 mm |
| Size / Dimension [z] | 31.5 mm |
| Size / Dimension [z] | 1.24 " |
| Standard Number | 60601-1, 62368-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 18.63 | |
| 5 | $ 18.34 | |||
| 10 | $ 18.05 | |||
| 25 | $ 17.20 | |||
| 50 | $ 16.62 | |||
| 100 | $ 15.48 | |||
| 250 | $ 15.25 | |||
| 500 | $ 16.45 | |||
Description
General part information
SLE48S1203 Series
12V 48 W AC/DC External Desktop (Class I), Desktop (Class II) Adapter Cord (Sold Separately) Input
