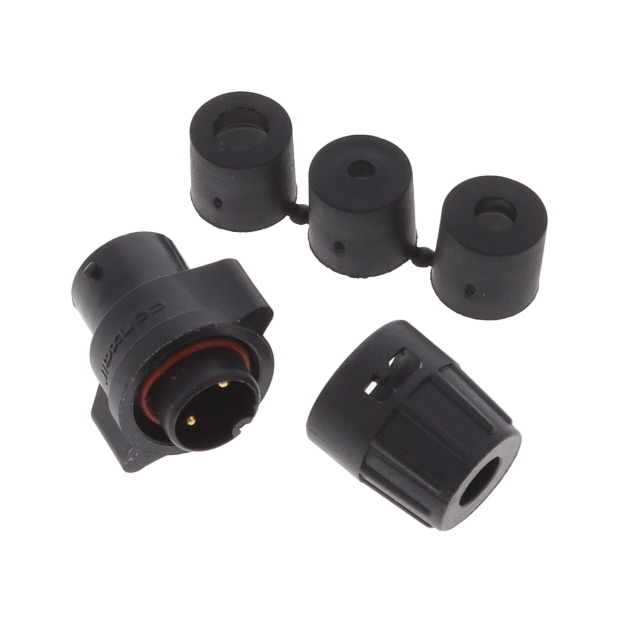

W6382-2PG-P-3DC

Active

Conxall/Switchcraft

CONN PLUG MALE 2POS SOLDER CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG MALE 2POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	W6382-2PG-P-3DC

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Thermoplastic
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	Coupling Nut, UV Resistant, Backshell
Ingress Protection	IP68, IP66, IP67
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	300 VAC

Part	Contact Material	Contact Finish - Mating	Mounting Type	Orientation	Fastening Type	Primary Material	Number of Positions	Shielding	Connector Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Features	Voltage Rating	Color	Backshell Material, Plating	Insert Material	Applications	Ingress Protection
Conxall/Switchcraft W6382-2PG-P-3DC	Copper Alloy	Gold	Free Hanging (In-Line)	Keyed	Bayonet Lock	Plastic	2	Unshielded	Male Pins Plug	Varies by Wire Gauge	85 °C	-40 °C	Backshell Coupling Nut UV Resistant	300 VAC	Black	Thermoplastic	Thermoplastic	Automotive Communication Systems Instrumentation	IP66 IP67 IP68

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Plug, Male Pins Solder Cup
