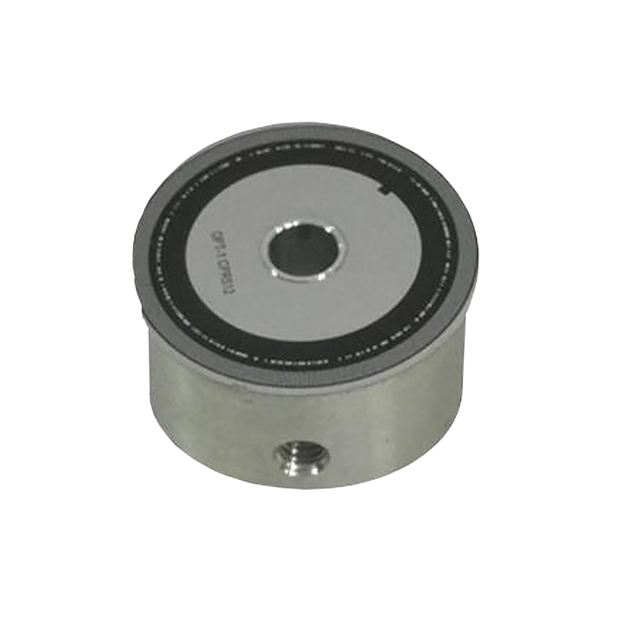

AR35-S13

Active

Broadcom Limited

ROTARY ENCODER OPTICAL PROG

Search across all available documentation for this part.

Active

Broadcom Limited

ROTARY ENCODER OPTICAL PROG

Technical Specifications

Parameters and characteristics for this part

Specification	AR35-S13

Actuator Type	External Magnet, Not Included
Built in Switch	False
Detent	False
Encoder Type	Optical
Mounting Type	Surface Mount
Pulses per Revolution	Programmable
Termination Style	Surface Mount (SMD,SMT)
Voltage - Supply [Max]	3.6 V, 5.5 V
Voltage - Supply [Min]	4.5 V, 3 V

Part	Built in Switch	Pulses per Revolution	Actuator Type	Detent	Mounting Type	Termination Style	Encoder Type	Voltage - Supply [Max]	Voltage - Supply [Min]
Broadcom Limited AR35-S13		Programmable	External Magnet Not Included		Surface Mount	Surface Mount (SMD SMT)	Optical	3.6 V 5.5 V	3 V 4.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	240	$ 23.85

General part information

Rotary Encoder Optical Programmable Digital
