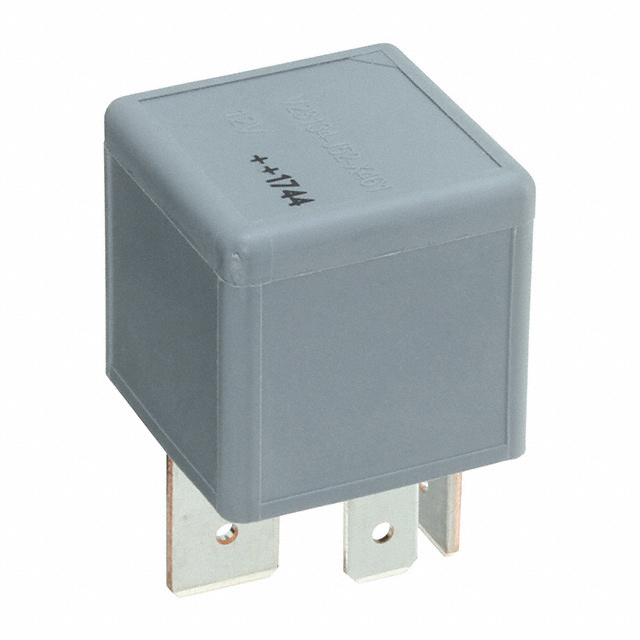

1-1414469-0
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 70A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-1414469-0
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 70A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1414469-0 |
|---|---|
| Coil Current | 133.3 mA |
| Coil Power | 1.6 W |
| Coil Resistance | 90 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Alloy |
| Contact Rating (Current) | 70 A |
| Mounting Type | Socketable |
| Must Operate Voltage | 7.2 VDC |
| Must Release Voltage | 1.6 VDC |
| Operate Time | 7 ms |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 2 ms |
| Termination Style | Plug In |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.66 | |
| 10 | $ 12.15 | |||
| 25 | $ 11.54 | |||
| 50 | $ 10.93 | |||
| 100 | $ 10.32 | |||
| 250 | $ 9.41 | |||
| 500 | $ 8.81 | |||
| 1000 | $ 8.35 | |||
Description
General part information
1414469 Series
RELAY GEN PURPOSE SPST 70A 12V
