142-0711-271

Active

Cinch Connectivity Solutions Johnson

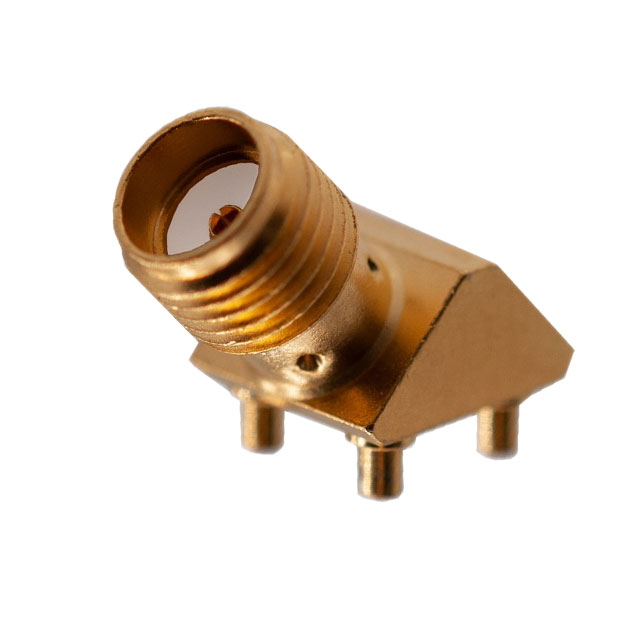

SMA JACK 45 DEGREE PCB MOUNT

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Johnson

SMA JACK 45 DEGREE PCB MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	142-0711-271

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Through Hole, 45° Angle
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	250 VDC

Part	Center Contact Plating	Dielectric Material	Impedance	Body Finish	Frequency - Max [Max]	Connector Style	Mating Cycles	Center Contact Material	Voltage Rating	Shield Termination	Connector Type	Number of Ports	Mounting Type	Contact Termination	Body Material	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]
Cinch Connectivity Solutions Johnson 142-0711-271	Gold	Polytetrafluoroethylene (PTFE)	50 Ohms	Gold	18 GHz	SMA	500	Beryllium Copper	250 VDC	Solder	Female Socket Jack	1	Through Hole 45° Angle	Solder	Brass	Gold	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Jack, Female Socket 50 Ohms Through Hole, 45° Angle Solder
