G53LAC-P16NFH2-000L

Active

ODU

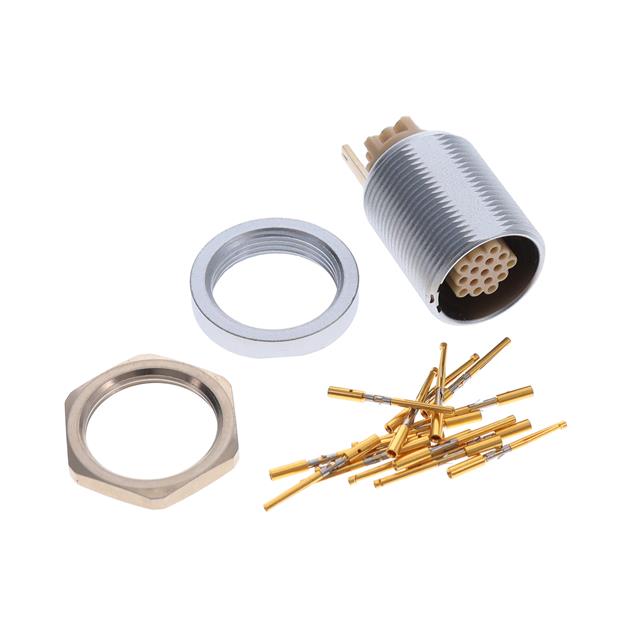

PANEL RECEPTACLE, STY G5, SER L,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsIEC 60601-1 MINI-SNAP Features

G53LAC-P16NFH2-000L

Active

ODU

PANEL RECEPTACLE, STY G5, SER L,

Deep-Dive with AI

DocumentsIEC 60601-1 MINI-SNAP Features

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G53LAC-P16NFH2-000L

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	10 A
Fastening Type	Push-Pull
Features	Medical (IEC 60601 (2 MOOP/2 MOPP))
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Front or Rear Side Nut
Number of Positions	16
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	3
Shielding	Shielded
Termination	Crimp
Voltage Rating	48 VDC

G53LAC-P Series

Part	Fastening Type	Shell Finish	Shell Size - Insert	Insert Material	Color	Ingress Protection	Orientation	Number of Positions	Applications	Connector Type	Mounting Feature	Features	Primary Material	Current Rating (Amps)	Shielding	Termination	Contact Material	Contact Finish - Mating	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Mounting Type	Number of Positions
ODU G53LAC-P16NFH2-000L	Push-Pull	Chrome over Nickel	3	Polyetheretherketone (PEEK)	Silver	IP50	A	16	Industrial Medical Military Testing Equipment & Measurement	Receptacle Female Sockets	Bulkhead - Front or Rear Side Nut	Medical (IEC 60601 (2 MOOP/2 MOPP))	Metal	10 A	Shielded	Crimp	Brass	Gold	48 VDC	-40 °C	120 °C	Brass
ODU G53LAC-P30QF00-A000	Push-Pull	Chrome over Nickel	3	Polyetheretherketone (PEEK)	Silver	IP50	A		Industrial Medical Military Testing Equipment & Measurement	Receptacle Female Sockets	Bulkhead - Front or Rear Side Nut	Ground	Metal	6 A	Unshielded	Solder	Brass	Gold	300 VDC	-40 °C	120 °C	Brass	Panel Mount Through Hole	30
ODU G53LAC-P30LFG0-0000	Push-Pull	Chrome over Nickel	3	Polyetheretherketone (PEEK)	Silver	IP50	A		Industrial Medical Military Testing Equipment & Measurement	Receptacle Female Sockets	Bulkhead - Front or Rear Side Nut	Ground	Metal	7.5 A	Unshielded		Brass	Gold	300 VDC	-40 °C	120 °C	Brass		30
ODU G53LAC-P26MFG0-0000	Push-Pull	Chrome over Nickel	3	Polyetheretherketone (PEEK)	Silver	IP50	A		Industrial Medical Military Testing Equipment & Measurement	Receptacle Female Sockets	Bulkhead - Front or Rear Side Nut	Ground	Metal	7.5 A	Unshielded		Brass	Gold	300 VDC	-40 °C	120 °C	Brass		26
ODU G53LAC-P04LTS0-0000	Push-Pull	Chrome over Nickel	3	Polyetheretherketone (PEEK)	Silver	IP50	A		Industrial Medical Military Testing Equipment & Measurement	Receptacle Female Sockets	Bulkhead - Front or Rear Side Nut	Ground	Metal	24 A	Unshielded		Brass	Gold	550 VDC	-40 °C	120 °C	Brass		4
ODU G53LAC-P26LFG0-0000	Push-Pull	Chrome over Nickel	3	Polyetheretherketone (PEEK)	Silver	IP50	A		Industrial Medical Military Testing Equipment & Measurement	Receptacle Female Sockets	Bulkhead - Front or Rear Side Nut	Ground	Metal	7.5 A	Unshielded		Brass	Gold	300 VDC	-40 °C	120 °C	Brass		26
ODU G53LAC-P10LPH0-0000	Push-Pull	Chrome over Nickel	3	Polyetheretherketone (PEEK)	Silver	IP50	A		Industrial Medical Military Testing Equipment & Measurement	Receptacle Female Sockets	Bulkhead - Front or Rear Side Nut	Ground	Metal	12 A	Unshielded		Brass	Gold	450 V	-40 °C	120 °C	Brass		10
ODU G53LAC-P04LTQ0-0000	Push-Pull	Chrome over Nickel	3	Polyetheretherketone (PEEK)	Silver	IP50	A		Industrial Medical Military Testing Equipment & Measurement	Receptacle Female Sockets	Bulkhead - Front or Rear Side Nut	Ground	Metal	18 A	Unshielded		Brass	Gold	550 VDC	-40 °C	120 °C	Brass		4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 128.02
		10	$ 117.48

Description

General part information

G53LAC-P Series

16 Position Circular Connector Receptacle, Female Sockets Crimp

Documents

Technical documentation and resources

IEC 60601-1 MINI-SNAP Features

Datasheet
