PJE5UFN10A_R1_00001
ActivePanjit International Inc.
DFN2510-10L, TVS/ESD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PJE5UFN10A_R1_00001
ActivePanjit International Inc.
DFN2510-10L, TVS/ESD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PJE5UFN10A_R1_00001 |
|---|---|
| Applications | USB, Ethernet |
| Capacitance @ Frequency | 0.6 pF |
| Current - Peak Pulse (10/1000µs) | 2.5 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 10-UFDFN |
| Power Line Protection | False |

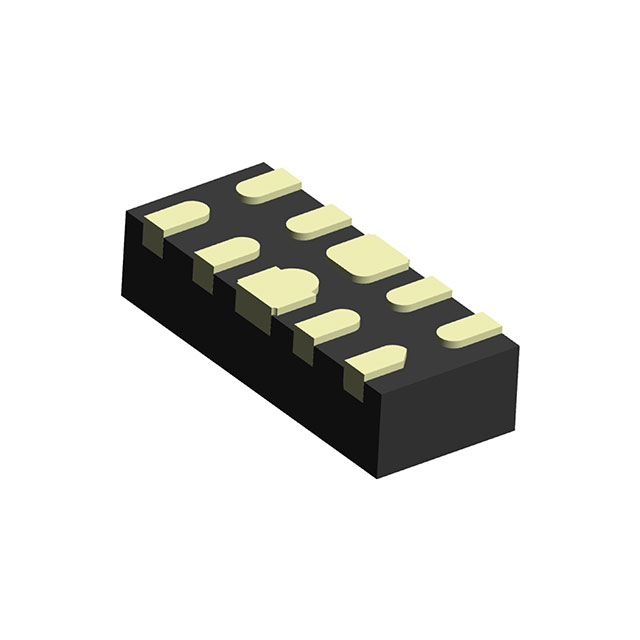

| Supplier Device Package | DFN2510-10L |
| Type | Zener |
| Unidirectional Channels [custom] | 4 |
| Voltage - Breakdown (Min) [Min] | 6 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 13 V |
| Voltage - Reverse Standoff (Typ) | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.45 | |
| 10 | $ 0.28 | |||
| 100 | $ 0.18 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.12 | |||
| 2000 | $ 0.10 | |||
| Digi-Reel® | 1 | $ 0.45 | ||
| 10 | $ 0.28 | |||
| 100 | $ 0.18 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.12 | |||
| 2000 | $ 0.10 | |||
| Tape & Reel (TR) | 5000 | $ 0.09 | ||
| 10000 | $ 0.08 | |||
| 15000 | $ 0.08 | |||
| 25000 | $ 0.07 | |||
| 35000 | $ 0.07 | |||
| 50000 | $ 0.07 | |||
| 125000 | $ 0.07 | |||
Description
General part information
PJE5UFN10A Series
13V Clamp 2.5A (8/20µs) Ipp Tvs Diode Surface Mount DFN2510-10L
