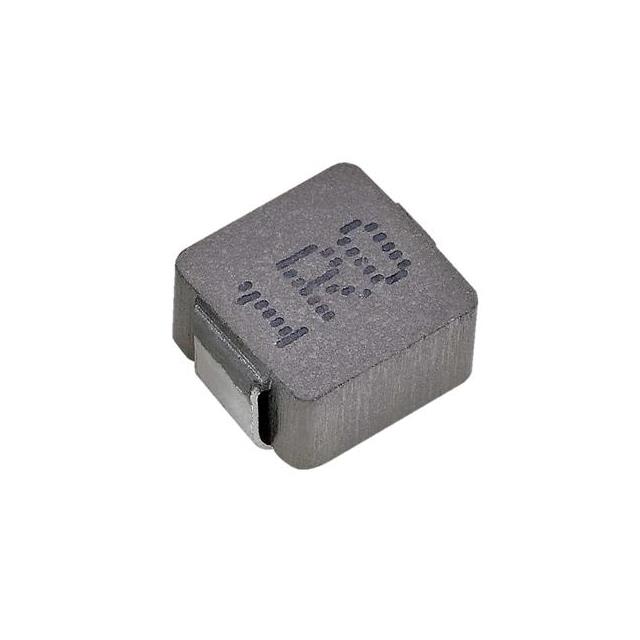

AIP0630GX-6R8MPBDG
ActiveINPAQ Technology Co., Ltd
POWER INDUCTOR 7.7X6.5X3 3.3UH 2
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AIP0630GX-6R8MPBDG
ActiveINPAQ Technology Co., Ltd
POWER INDUCTOR 7.7X6.5X3 3.3UH 2
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AIP0630GX-6R8MPBDG |
|---|---|
| Current - Saturation (Isat) | 9.7 A |
| Current Rating (Amps) | 5.2 A |
| DC Resistance (DCR) [Max] | 44.5 mOhm |
| Frequency - Self Resonant | 16.5 MHz |
| Height - Seated (Max) | 3 mm |
| Height - Seated (Max) [Max] | 0.118 in |
| Inductance | 6.8 µH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Alloy Powder |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension [x] | 0.283 in |
| Size / Dimension [x] | 7.2 mm |
| Size / Dimension [y] | 0.256 in |
| Size / Dimension [y] | 6.5 mm |
| Tolerance | 20 % |
| Type | Molded |
