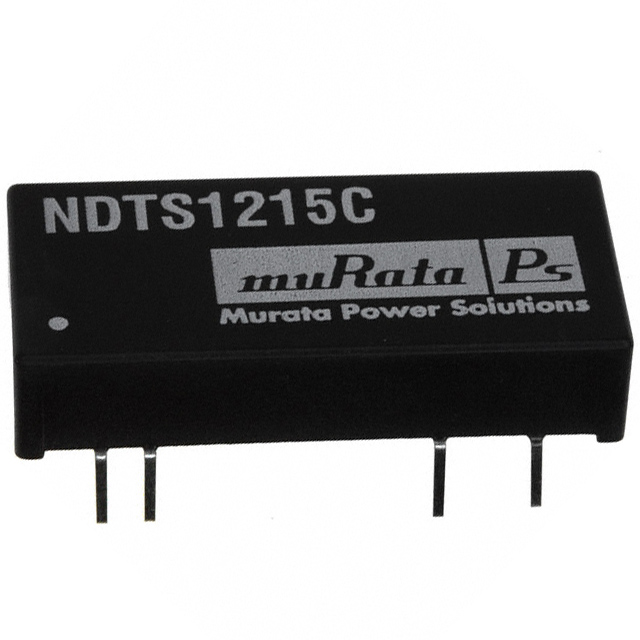

NDTS1215C

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 15V 3W

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 15V 3W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Package / Case	Efficiency	Voltage - Isolation	Mounting Type	Applications	Type	Number of Outputs	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Power (Watts)
Murata Power Solutions Inc. NDTS1212C	12 V	6.9 mm	0.27 "	0.58 "	14.7 mm	1.27 in	32.3 mm	85 °C	-40 °C	9 V	24-DIP Module (600 mil 8 Leads)	75 %	1000 V	Through Hole	ITE (Commercial)	Isolated Module	1	18 V	250 mA	3 W
Murata Power Solutions Inc. NDTS1215C	15 V	6.9 mm	0.27 "	0.58 "	14.7 mm	1.27 in	32.3 mm	85 °C	-40 °C	9 V	24-DIP Module (600 mil 8 Leads)	76 %	1000 V	Through Hole	ITE (Commercial)	Isolated Module	1	18 V	200 mA	3 W
Murata Power Solutions Inc. NDTS1205C	5 V	6.9 mm	0.27 "	0.58 "	14.7 mm	1.27 in	32.3 mm	85 °C	-40 °C	9 V	24-DIP Module (600 mil 8 Leads)	73 %	1000 V	Through Hole	ITE (Commercial)	Isolated Module	1	18 V	600 mA	3 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 15V 200mA 9V - 18V Input
