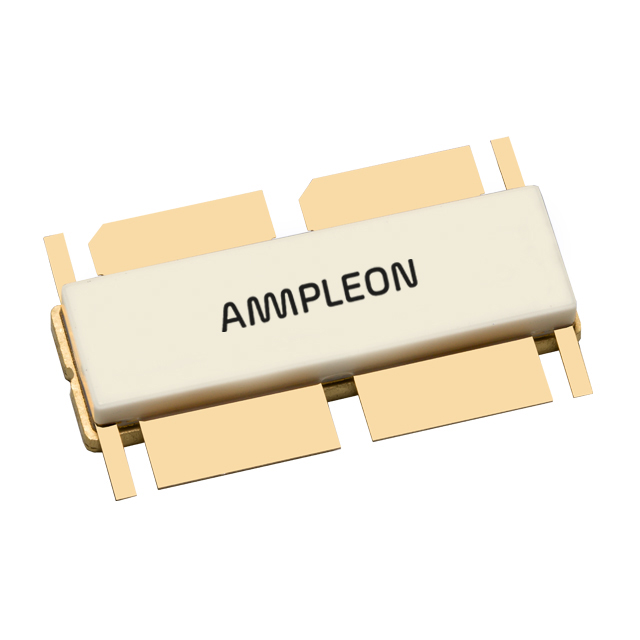

BLF8G09LS-400PWJ

Obsolete

Ampleon USA Inc.

RF MOSFET LDMOS 28V CDFM8

Search across all available documentation for this part.

Obsolete

Ampleon USA Inc.

RF MOSFET LDMOS 28V CDFM8

Technical Specifications

Parameters and characteristics for this part

Part	Frequency [Min]	Frequency [Max]	Mounting Type	Current - Test	Voltage - Test	Supplier Device Package	Power - Output	Gain	Package / Case	Voltage - Rated	Frequency	Configuration
Ampleon USA Inc. BLF8G10LS-270V,112	871.5 MHz	891.5 MHz	Chassis Mount	2 A	28 V	CDFM6	67 W	19.5 dB	SOT-1244B	65 V
Ampleon USA Inc. BLF8G22LS-270GV,12	2.11 GHz	2.17 GHz	Chassis Mount	2.4 A	28 V	CDFM6	80 W	17.3 dB	SOT-1244C	65 V
Ampleon USA Inc. BLF8G27LS-100V,118	2.5 GHz	2.7 GHz	Chassis Mount	900 mA	28 V	CDFM6	25 W	17 dBi	SOT-1244B	65 V
Ampleon USA Inc. BLF8G27LS-100V,112	2.5 GHz	2.7 GHz	Chassis Mount	900 mA	28 V	CDFM6	25 W	17 dBi	SOT-1244B	65 V
Ampleon USA Inc. BLF8G22LS-140J			Chassis Mount	900 mA	28 V	SOT502B	33 W	18.5 dBi	SOT-502B	65 V	2.11 GHz
Ampleon USA Inc. BLF8G24LS-150GVJ			Chassis Mount	1.3 A	28 V	CDFM6	45 W	19 dB	SOT-1244C	65 V
Ampleon USA Inc. BLF8G27LS-150GVQ	2.6 GHz	2.7 GHz	Chassis Mount	1.3 A	28 V	CDFM6	45 W	18 dBi	SOT-1244C	65 V
Ampleon USA Inc. BLF8G09LS-400PWJ	718.5 MHz	725.5 MHz	Chassis Mount	3.4 A	28 V	CDFM8	95 W	20.6 dB	SOT-1242B	65 V		Common Source Dual
Ampleon USA Inc. BLF8G10LS-160,118	920 MHz	960 MHz	Chassis Mount	1.1 A	30 V	SOT502B	35 W	19.7 dB	SOT-502B	65 V
Ampleon USA Inc. BLF8G24LS-150VU			Chassis Mount	1.3 A	28 V	CDFM6	45 W	19 dB	SOT-1244B	65 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Mosfet 28 V 3.4 A 718.5MHz ~ 725.5MHz 20.6dB 95W CDFM8

Technical documentation and resources
