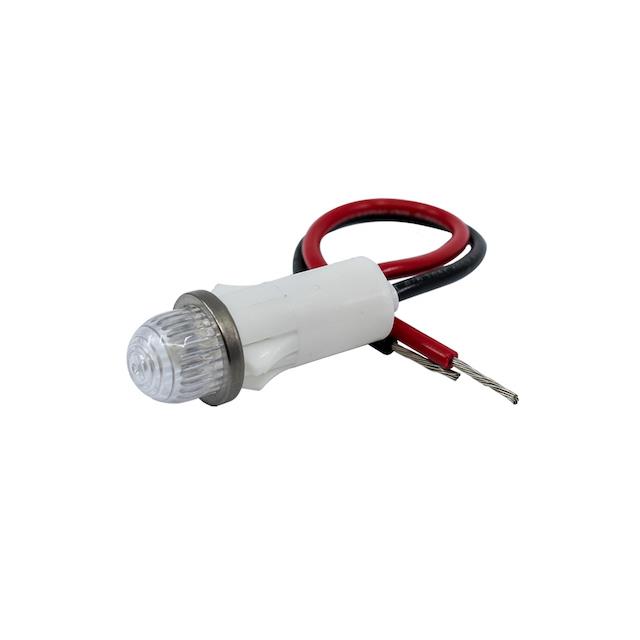

1092A2-12V

Active

Visual Communications Company - VCC

PMI RND .5" LED CLR HI-DOME 12V

Deep-Dive with AI

Search across all available documentation for this part.

1092A2-12V

Active

Visual Communications Company - VCC

PMI RND .5" LED CLR HI-DOME 12V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1092A2-12V

Current	25 mA
Lamp Color	Clear
Lens Color	Colorless
Lens Size	T-1 3/4
Lens Size	5 mm
Lens Style	Round with Domed Top
Lens Transparency	Clear
Millicandela Rating	7000 mcd
Panel Cutout Dimensions	12.7 mm
Panel Cutout Dimensions	0.5 in
Panel Cutout Shape	Round
Ratings	AC/DC
Termination Style	Wire Leads - 4.8" (121.92mm)
Type	LED
Voltage	12 V
Wavelength - Peak	468 nm

1092A Series

Part	Current	Lens Size	Lens Size	Lamp Color	Panel Cutout Shape	Type	Lens Transparency	Termination Style	Millicandela Rating	Lens Color	Panel Cutout Dimensions	Panel Cutout Dimensions	Ratings	Wavelength - Peak	Voltage	Lens Style	Termination Style	Termination Style
Visual Communications Company - VCC 1092A2-28V	25 mA	T-1 3/4	5 mm	Clear	Round	LED	Clear	Wire Leads - 4.8" (121.92mm)	7000 mcd	Colorless	12.7 mm	0.5 in	AC/DC	468 nm	28 V	Round with Domed Top
Visual Communications Company - VCC 1092A2-125VAC	25 mA			Clear	Round	LED	Diffused	Wire Leads - 4.8" (121.92mm)	7000 mcd		12.7 mm	0.5 in	AC		125 V	Round with Domed Top
Visual Communications Company - VCC 1092A5-250VAC	25 mA			Green	Round	LED	Diffused	Wire Leads - 4.8" (121.92mm)	12000 mcd	Green	12.7 mm	0.5 in	AC		250 V	Round with Domed Top
Visual Communications Company - VCC 1092A3-28V	25 mA			Amber	Round	LED	Diffused	Wire Leads	13000 mcd	Amber	12.7 mm	0.5 in	DC		28 V	Round with Domed Top	4.6 in	116.84 mm
Visual Communications Company - VCC 1092A2-12V	25 mA	T-1 3/4	5 mm	Clear	Round	LED	Clear	Wire Leads - 4.8" (121.92mm)	7000 mcd	Colorless	12.7 mm	0.5 in	AC/DC	468 nm	12 V	Round with Domed Top
Visual Communications Company - VCC 1092A3-12V	25 mA			Amber	Round	LED	Diffused	Wire Leads	13000 mcd	Amber	12.7 mm	0.5 in	DC		12 V	Round with Domed Top	4.6 in	116.84 mm
Visual Communications Company - VCC 1092A1-250VAC	25 mA			Red	Round	LED	Diffused	Wire Leads - 4.8" (121.92mm)	13000 mcd	Red	12.7 mm	0.5 in	AC		250 V	Round with Domed Top
Visual Communications Company - VCC 1092A2-250VAC	25 mA			Clear	Round	LED	Diffused	Wire Leads - 4.8" (121.92mm)	7000 mcd		12.7 mm	0.5 in	AC		250 V	Round with Domed Top

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	200	$ 3.96

Description

General part information

1092A Series

LED Panel Indicator Clear Clear 12V 25mA Wire Leads - 4.8" (121.92mm)

Documents

Technical documentation and resources

No documents available
