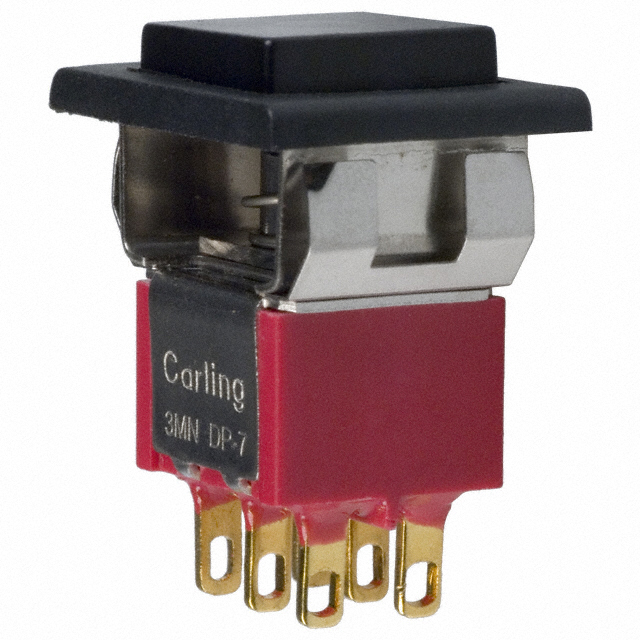

3MN-DP7-AP2/22-M1RE
ActiveCarling Technologies
SWITCH PUSH DPDT 0.4VA 20V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3MN-DP7-AP2/22-M1RE
ActiveCarling Technologies
SWITCH PUSH DPDT 0.4VA 20V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3MN-DP7-AP2/22-M1RE |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Button, Square |
| Circuit | DPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 0.4 VA |
| Electrical Life | 50000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Panel Cutout Dimensions [x] | 15.24 mm |
| Panel Cutout Dimensions [y] | 12.7 mm |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 20 V |
| Voltage Rating - DC | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
3MN-DP7 Series
Pushbutton Switch DPDT Standard Panel Mount, Snap-In
