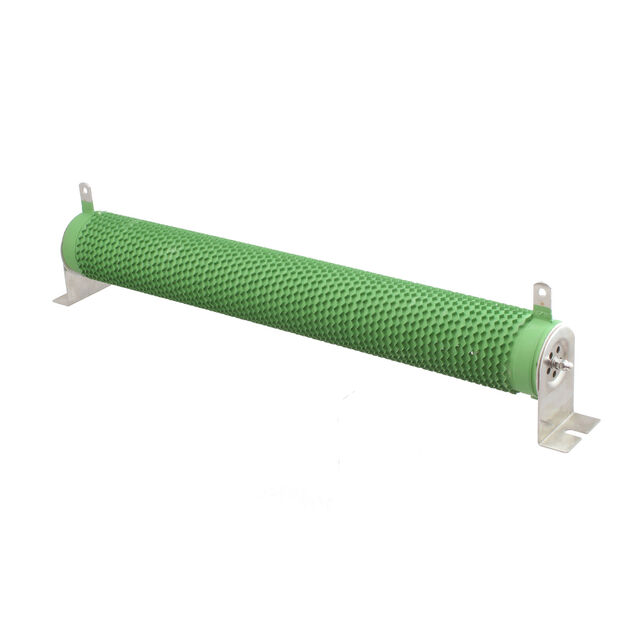

TE2000B4R7J

Active

TE Connectivity Passive Product

RES CHAS MNT 4.7 OHM 5% 2000W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TE2000B4R7J

Active

TE Connectivity Passive Product

RES CHAS MNT 4.7 OHM 5% 2000W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TE2000B4R7J

Coating, Housing Type	Silicone Coated
Composition	Wirewound
Features	Flame Proof, Safety
Lead Style	Solder Lugs
Mounting Feature	Brackets
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Tubular
Power (Watts)	2000 W
Resistance	4.7 Ohms
Size / Dimension [diameter]	2.362 in
Size / Dimension [diameter]	60 mm
Size / Dimension [x]	20.079 "
Size / Dimension [x]	510 mm
Temperature Coefficient	440 ppm/°C
Tolerance	5 %

TE2000 Series

Part	Temperature Coefficient	Tolerance	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Mounting Feature	Resistance	Package / Case	Lead Style	Coating, Housing Type	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Features	Composition
TE Connectivity Passive Product TE2000B100RJ	440 ppm/°C	5 %	20.079 "	2.362 in	60 mm	510 mm	Brackets	100 Ohms	Radial Tubular	Solder Lugs	Silicone Coated	2000 W	155 °C	-55 °C	Flame Proof Safety	Wirewound
TE Connectivity Passive Product TE2000B4R7J	440 ppm/°C	5 %	20.079 "	2.362 in	60 mm	510 mm	Brackets	4.7 Ohms	Radial Tubular	Solder Lugs	Silicone Coated	2000 W	155 °C	-55 °C	Flame Proof Safety	Wirewound
TE Connectivity Passive Product TE2000B470RJ	440 ppm/°C	5 %	20.079 "	2.362 in	60 mm	510 mm	Brackets	470 Ohms	Radial Tubular	Solder Lugs	Silicone Coated	2000 W	155 °C	-55 °C	Flame Proof Safety	Wirewound
TE Connectivity Passive Product TE2000B10RJ	440 ppm/°C	5 %	20.079 "	2.362 in	60 mm	510 mm	Brackets	10 Ohms	Radial Tubular	Solder Lugs	Silicone Coated	2000 W	155 °C	-55 °C	Flame Proof Safety	Wirewound
TE Connectivity Passive Product TE2000B2R7J	440 ppm/°C	5 %	20.079 "	2.362 in	60 mm	510 mm	Brackets	2.7 Ohms	Radial Tubular	Solder Lugs	Silicone Coated	2000 W	155 °C	-55 °C	Flame Proof Safety	Wirewound
TE Connectivity Passive Product TE2000B180RJ	440 ppm/°C	5 %	20.079 "	2.362 in	60 mm	510 mm	Brackets	180 Ohms	Radial Tubular	Solder Lugs	Silicone Coated	2000 W	155 °C	-55 °C	Flame Proof Safety	Wirewound
TE Connectivity Passive Product TE2000B1R2J	440 ppm/°C	5 %	20.079 "	2.362 in	60 mm	510 mm	Brackets	1.2 Ohms	Radial Tubular	Solder Lugs	Silicone Coated	2000 W	155 °C	-55 °C	Flame Proof Safety	Wirewound
TE Connectivity Passive Product TE2000B1K8J	440 ppm/°C	5 %	20.079 "	2.362 in	60 mm	510 mm	Brackets	1.8 kOhms	Radial Tubular	Solder Lugs	Silicone Coated	2000 W	155 °C	-55 °C	Flame Proof Safety	Wirewound
TE Connectivity Passive Product TE2000B150RJ	440 ppm/°C	5 %	20.079 "	2.362 in	60 mm	510 mm	Brackets	150 Ohms	Radial Tubular	Solder Lugs	Silicone Coated	2000 W	155 °C	-55 °C	Flame Proof Safety	Wirewound
TE Connectivity Passive Product TE2000B1K2J	440 ppm/°C	5 %	20.079 "	2.362 in	60 mm	510 mm	Brackets	1.2 kOhms	Radial Tubular	Solder Lugs	Silicone Coated	2000 W	155 °C	-55 °C	Flame Proof Safety	Wirewound

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 124.32
		10	$ 110.72
		25	$ 108.78
		50	$ 101.01
		100	$ 96.16

Description

General part information

TE2000 Series

4.7 Ohms ±5% 2000W Wirewound Chassis Mount Resistor
