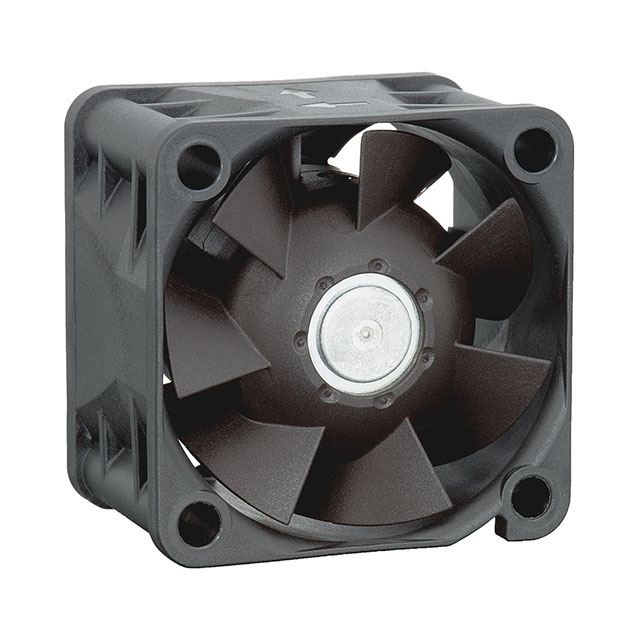

422JH

Active

ebm-papst Inc.

FAN AXIAL 40X28MM 12VDC WIRE

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN AXIAL 40X28MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	422JH

Air Flow	22.4 CFM
Air Flow	0.627 m³/min
Approval Agency	UL, VDE, CSA
Bearing Type	Ball
Fan Type	Tubeaxial
Lifetime @ Temp.	60000 Hrs
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	54 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	6.8 W
RPM	17200 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	8 VDC
Weight	0.099 lb
Weight	44.91 g
Width [y]	28 mm

Part	Bearing Type	Noise	Power (Watts)	Voltage Range [Min]	Voltage Range [Max]	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Air Flow	Air Flow	Termination	Voltage - Rated	Width [y]	Material - Blade	Weight	Weight	Lifetime @ Temp.	Material - Frame	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	RPM	Fan Type	Features
ebm-papst Inc. 422JH	Ball	54 dB	6.8 W	8 VDC	13.8 VDC	40 mm	Square	40 mm	22.4 CFM	0.627 m³/min	2 Wire Leads	12 VDC	28 mm	Fiberglass Reinforced Nylon Polyamide (PA)	0.099 lb	44.91 g	60000 Hrs	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	CSA UL VDE	-20 °C	70 °C	-20 C	70 °C	17200 RPM	Tubeaxial
ebm-papst Inc. 422JM	Ball	42 dB		8 VDC	13.8 VDC	40 mm	Square	40 mm	14.1 CFM	0.395 mł/min	2 Wire Leads	12 VDC	28 mm	Fiberglass Reinforced Nylon Polyamide (PA)	0.099 lb	44.91 g	67500 Hrs	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	CSA UL VDE	-20 °C	70 °C	-20 C	70 °C	11100 RPM	Tubeaxial
ebm-papst Inc. 422J/2HP	Ball	54 dB	6.8 W	8 VDC	13.8 VDC	40 mm	Square	40 mm	22.4 CFM	0.627 m³/min	4 Wire Leads	12 VDC	28 mm	Nylon Polyamide (PA)	0.099 lb	44.91 g	60000 Hrs		CE	-20 °C	70 °C	-20 C	70 °C	17200 RPM	Tubeaxial	PWM Control Speed Sensor (Tach)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 22.4 CFM (0.627mł/min) 2 Wire Leads
