Q8F7BXXB02E

Active

APEM

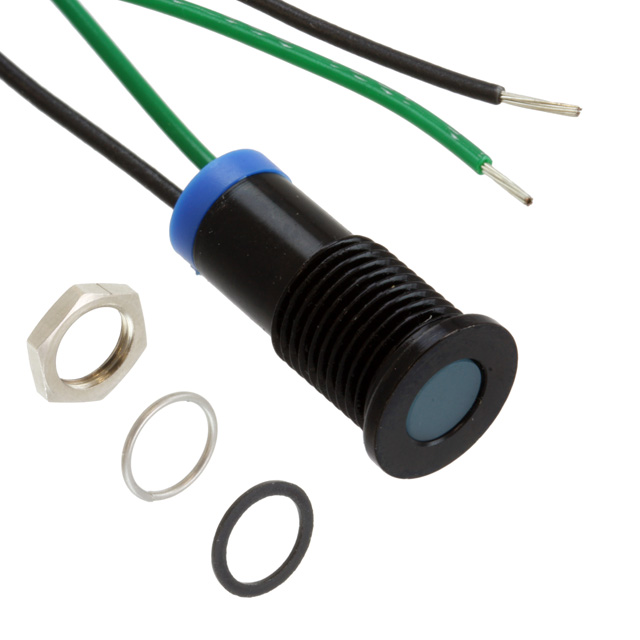

LED PM INDICATOR FLUSH BLUE

Search across all available documentation for this part.

Active

APEM

LED PM INDICATOR FLUSH BLUE

Technical Specifications

Parameters and characteristics for this part

Specification	Q8F7BXXB02E

Ingress Protection	IP67
Lamp Color	Blue
Lens Color	Blue
Lens Size	T-1 3/4
Lens Size	5 mm
Lens Transparency	Diffused
Millicandela Rating	200 mcd
Panel Cutout Dimensions [custom]	0.31 in
Panel Cutout Dimensions [custom]	7.87 mm
Panel Cutout Shape	Round
Termination Style	Wire Leads - 7.87" (200.00mm)
Type	LED
Viewing Angle	100 °
Voltage	2 V

Part	Viewing Angle	Millicandela Rating	Lamp Color	Voltage	Type	Panel Cutout Shape	Lens Color	Ingress Protection	Lens Size	Lens Size	Termination Style	Lens Transparency	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]
APEM Q8F7BXXB02E	100 °	200 mcd	Blue	2 V	LED	Round	Blue	IP67	T-1 3/4	5 mm	Wire Leads - 7.87" (200.00mm)	Diffused	0.31 in	7.87 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Blue Diffused 100° 2V 20mA Wire Leads - 7.87" (200.00mm)
