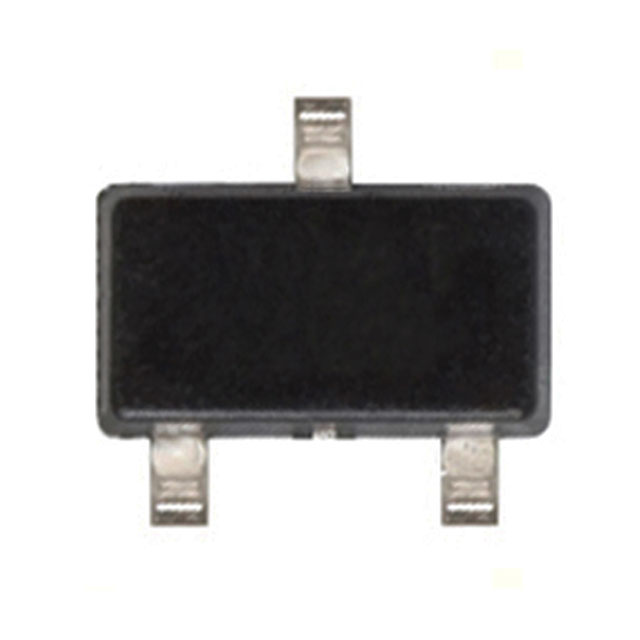

VF360NT
ActiveHoneywell Sensing and Productivity Solutions
MAGNETIC SWITCH LATCH SOT23
Deep-Dive with AI
Search across all available documentation for this part.
VF360NT
ActiveHoneywell Sensing and Productivity Solutions
MAGNETIC SWITCH LATCH SOT23
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VF360NT |
|---|---|
| Current - Output (Max) [Max] | 20 mA |
| Current - Supply (Max) [Max] | 8 mA |
| Function | Latch |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Open Drain |
| Package / Case | SOT-23-3, TO-236-3, SC-59 |
| Polarization | South Pole |
| Qualification | AEC-Q100 |
| Sensing Range [Max] | 5.5 mT |
| Sensing Range [Min] | -5.5 mT |
| Supplier Device Package | SOT-23 |
| Technology | Hall Effect |
| Test Condition [Max] | 150 °C |
| Test Condition [Min] | -40 °C |
| Voltage - Supply [Max] | 24 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.50 | |
| 5 | $ 1.33 | |||
| 10 | $ 1.26 | |||
| 25 | $ 1.19 | |||
| 50 | $ 1.14 | |||
| 100 | $ 1.09 | |||
| 500 | $ 0.99 | |||
| 1000 | $ 0.96 | |||
| Digi-Reel® | 1 | $ 1.50 | ||
| 5 | $ 1.33 | |||
| 10 | $ 1.26 | |||
| 25 | $ 1.19 | |||
| 50 | $ 1.14 | |||
| 100 | $ 1.09 | |||
| 500 | $ 0.99 | |||
| 1000 | $ 0.96 | |||
| Tape & Reel (TR) | 3000 | $ 0.70 | ||
Description
General part information
VF360 Series
Digital Switch Latch Open Drain Hall Effect SOT-23
