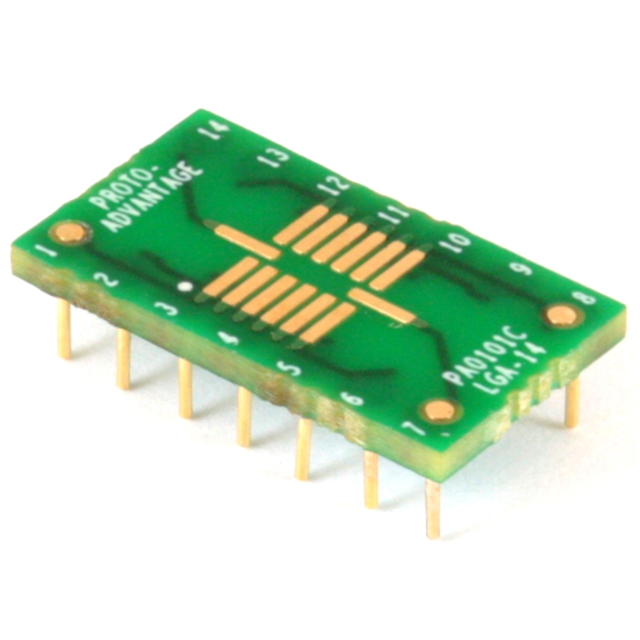

PA0101C
ActiveChip Quik Inc.
LGA-14 TO DIP-14 SMT ADAPTER (0.
Deep-Dive with AI
Search across all available documentation for this part.
PA0101C
ActiveChip Quik Inc.
LGA-14 TO DIP-14 SMT ADAPTER (0.
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PA0101C |
|---|---|
| Board Thickness | 1.6 mm |
| Board Thickness | 0.063 in |
| Material | FR4 Epoxy Glass |
| Number of Positions | 14 |
| Package Accepted | LGA |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
| Proto Board Type | SMD to DIP |
| Size / Dimension [x] | 17.78 mm |
| Size / Dimension [x] | 0.7 in |
| Size / Dimension [y] | 0.4 in |
| Size / Dimension [y] | 10.16 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.79 | |
Description
General part information
PA0101 Series
LGA-14 TO DIP-14 SMT ADAPTER (0.
Documents
Technical documentation and resources
No documents available
