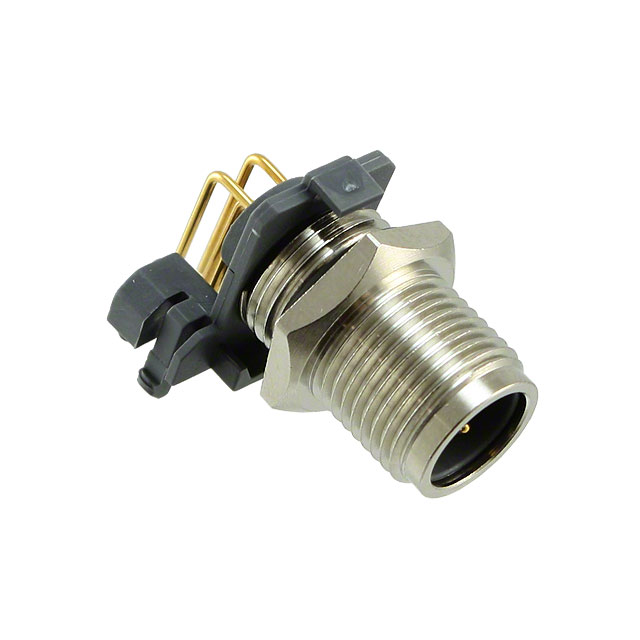

43-01211
ActiveAmphenol CONEC
SENSOR CONN, M12, R/A PLUG, 5POS, PANEL ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
43-01211
ActiveAmphenol CONEC
SENSOR CONN, M12, R/A PLUG, 5POS, PANEL ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 43-01211 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Zinc |
| Current Rating (Amps) | 4 A |
| Features | Board Guide, Board Lock |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Copper Zinc |
| Shell Size - Insert | M12-5 |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 60 VDC |
43-0121 Series
| Part | Contact Finish - Mating | Current Rating (Amps) | Primary Material | Ingress Protection | Material Flammability Rating | Shell Size - Insert | Shielding | Mounting Type | Color | Contact Material | Shell Material | Shell Finish | Orientation | Mounting Feature | Insert Material | Number of Positions | Features | Voltage Rating | Termination | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol CONEC | Gold | 4 A | Metal | IP67 - Dust Tight Waterproof | UL94 | M12-4 | Shielded | Panel Mount Through Hole | Silver | Copper Zinc | Copper Zinc | Nickel | B | Bulkhead | Polyamide (PA) Nylon Glass Filled | 4 | Board Guide Board Lock | 250 VDC | Solder | Female Sockets Plug | -30 ░C | 85 °C |
Amphenol CONEC | Gold | 4 A | Metal | IP67 - Dust Tight Waterproof | UL94 | M12-4 | Shielded | Panel Mount Through Hole | Silver | Copper Zinc | Copper Zinc | Nickel | B | Bulkhead | Polyamide (PA66) Nylon 6/6 | 4 | 250 VDC | Solder | Male Pins Receptacle | -30 ░C | 85 °C | |
Amphenol CONEC | Gold | 4 A | Metal | IP67 - Dust Tight Waterproof | UL94 | M12-4 | Shielded | Panel Mount Through Hole | Silver | Copper Zinc | Copper Zinc | Nickel | B | Bulkhead | Polyamide (PA66) Nylon 6/6 | 4 | Board Guide Board Lock | 250 VDC | Solder | Male Pins Receptacle | -30 ░C | 85 °C |
Amphenol CONEC | Gold | 4 A | Metal | IP67 - Dust Tight Waterproof | UL94 | M12-4 | Shielded | Panel Mount Through Hole | Silver | Copper Zinc | Copper Zinc | Nickel | B | Bulkhead - Front Side Nut | Polyamide (PA66) Nylon 6/6 | 4 | 250 VDC | Solder | Male Pins Receptacle | -30 ░C | 85 °C | |
Amphenol CONEC | Gold | 4 A | Metal | IP67 - Dust Tight Waterproof | UL94 | M12-4 | Shielded | Panel Mount Through Hole | Silver | Copper Zinc | Copper Zinc | Nickel | B | Bulkhead - Front Side Nut | Polyamide (PA66) Nylon 6/6 | 4 | Board Guide Board Lock | 250 VDC | Solder | Male Pins Receptacle | -30 ░C | 85 °C |
Amphenol CONEC | Gold | 4 A | Metal | IP67 - Dust Tight Waterproof | UL94 | M12-5 | Shielded | Panel Mount Right Angle Through Hole | Silver | Copper Zinc | Copper Zinc | Nickel | A | Bulkhead - Front Side Nut | Polyamide (PA66) Nylon 6/6 | Board Guide Board Lock | 60 VDC | Solder | Male Pins Receptacle | -30 ░C | 85 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
43-0121 Series
5 Position Circular Connector Receptacle, Male Pins Solder
