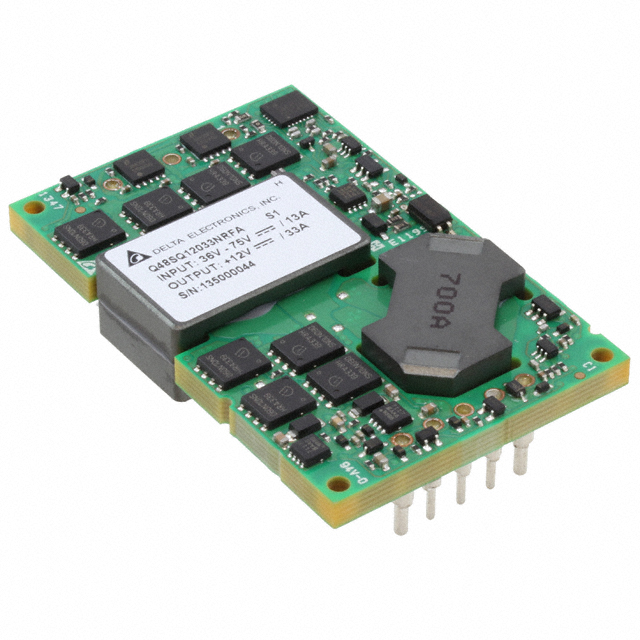

Q48SQ12033NRFH
ActiveDelta Electronics
MODULE DC-DC 48VIN 1-OUT 12V 33A 400W 8-PIN QUARTER-BRICK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | Q48SQ12033NRFH |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 33 A |
| Efficiency | 95.5 % |
| Features | OTP, Remote On/Off, OVP, UVLO, OCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 1/4 Brick, 8-DIP Module |
| Power (Watts) | 400 W |
| Size / Dimension [x] | 57.9 mm |
| Size / Dimension [x] | 2.28 in |
| Size / Dimension [y] | 1.45 in |
| Size / Dimension [y] | 36.8 mm |
| Size / Dimension [z] | 12.7 mm |
| Size / Dimension [z] | 0.5 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 70.94 | |
| 5 | $ 66.88 | |||
| 10 | $ 65.20 | |||
| 25 | $ 63.05 | |||
| 40 | $ 61.97 | |||
| 80 | $ 60.42 | |||
Description
General part information
Q48SQ Series
Isolated Module DC DC Converter 1 Output 12V 33A 36V - 75V Input
