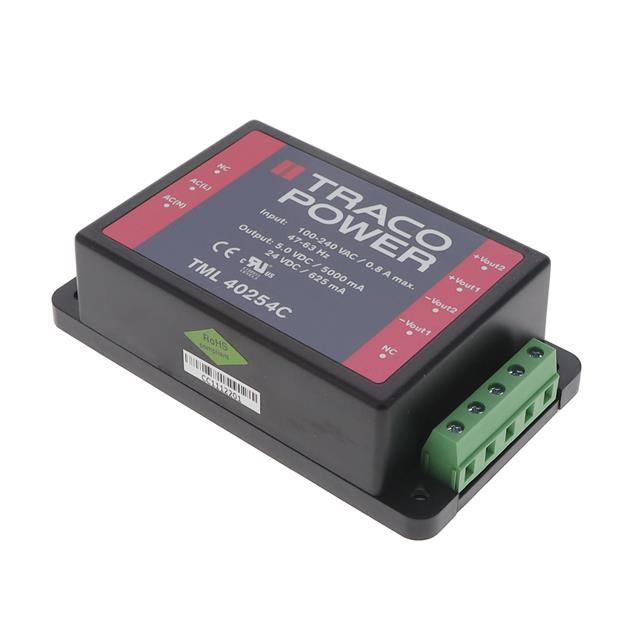

TML 40254C

Active

Traco Power

AC/DC CONVERTER 5V 24V 40W

Search across all available documentation for this part.

Active

Traco Power

AC/DC CONVERTER 5V 24V 40W

Technical Specifications

Parameters and characteristics for this part

Specification	TML 40254C

Applications	ITE (Commercial)
Approval Agency	CB, cURus, CE
Current - Output 1	5 A
Current - Output 2	625 mA
Efficiency	84 %
Features	Adjustable Output, Universal Input
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	40 W
Size / Dimension [x]	4.41 "
Size / Dimension [x]	112 mm
Size / Dimension [y]	2.5 in
Size / Dimension [y]	63.5 mm
Size / Dimension [z]	32.5 mm
Size / Dimension [z]	1.28 in
Type	Enclosed
Voltage - Input [Max]	375 VDC, 264 VAC
Voltage - Input [Min]	90 VAC, 100 V
Voltage - Isolation	3000 V
Voltage - Output 1	5 V
Voltage - Output 2	24 V

Part	Voltage - Output 1	Minimum Load Required	Current - Output 2	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Voltage - Input [Min]	Voltage - Input [Max]	Features	Voltage - Output 2	Approval Agency	Power (Watts)	Efficiency	Mounting Type	Applications	Current - Output 1	Type
Traco Power TML 40254C	5 V		625 mA	32.5 mm	1.28 in	2.5 in	4.41 "	63.5 mm	112 mm	2	60 °C	-40 °C	3000 V	90 VAC 100 V	264 VAC 375 VDC	Adjustable Output Universal Input	24 V	CB CE cURus	40 W	84 %	Chassis Mount	ITE (Commercial)	5 A	Enclosed
