19410100422 - 19410100422

19410100422

Active
HARTING Technology Group

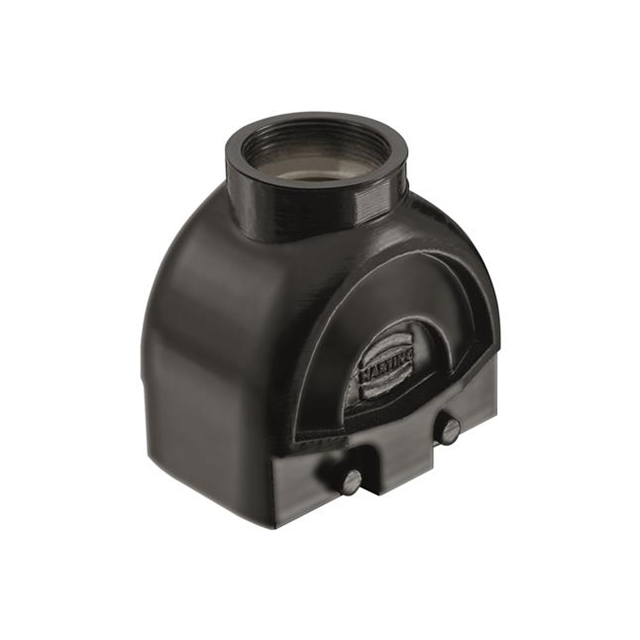

HEAVY DUTY CONNECTOR, M32, HOOD, TOP ENTRY, NYLON (POLYAMIDE), FIBREGLASS REINFORCED, 2 LEVER, 10B

Deep-Dive with AI

Search across all available documentation for this part.

Documents19410100422 Prod Declaration CertDatasheet
19410100422 - 19410100422

19410100422

Active
HARTING Technology Group

HEAVY DUTY CONNECTOR, M32, HOOD, TOP ENTRY, NYLON (POLYAMIDE), FIBREGLASS REINFORCED, 2 LEVER, 10B

Deep-Dive with AI

Documents19410100422 Prod Declaration CertDatasheet

Technical Specifications

Parameters and characteristics for this part

Specification19410100422
Connector TypeHood
Housing ColorBlack
Housing MaterialPolyamide (PA), Nylon, Glass Filled
Ingress ProtectionIP65 - Dust Tight, Water Resistant
Lock LocationLocking Clip (2) on Base Bottom
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Size10B
Size / Dimension [x]74 mm
Size / Dimension [x]2.913 "
Size / Dimension [y]2.244 "
Size / Dimension [y]57 mm
Size / Dimension [z]2.996 in
Size / Dimension [z]76.1 mm
StyleTop Entry
Thread SizeM32

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 31.10
10$ 22.87
25$ 20.51
50$ 18.98
100$ 17.64
250$ 16.11
500$ 15.12
NewarkEach 1$ 24.51
10$ 22.62
25$ 20.39
50$ 19.83
100$ 17.49
250$ 16.27
500$ 15.93

Description

General part information

19410100 Series

Hood Connector Top Entry M32 10B IP65 - Dust Tight, Water Resistant

Documents

Technical documentation and resources

19410100422 Prod Declaration Cert

Datasheet

Datasheet

Datasheet
