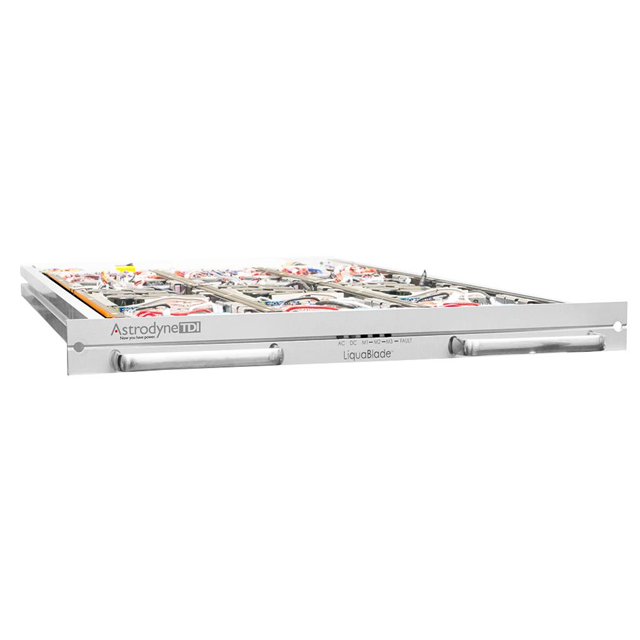

T100104286-1-LF
ObsoleteAstrodyne TDI
AC/DC CONVERTER 180V 16500W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T100104286-1-LF
ObsoleteAstrodyne TDI
AC/DC CONVERTER 180V 16500W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | T100104286-1-LF |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | UL, CE |
| Current - Output 1 | 120 A |
| Efficiency | 91 % |
| Features | Adjustable Output |
| Mounting Type | Rack Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | 5 °C |
| Power (Watts) | 16500 W |
| Size / Dimension [x] | 758 mm |
| Size / Dimension [x] | 29.87 in |
| Size / Dimension [y] | 19 in |
| Size / Dimension [y] | 482 mm |
| Size / Dimension [z] | 1.72 in |
| Size / Dimension [z] | 43 mm |
| Standard Number | 60950-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 480 VAC |
| Voltage - Input [Min] | 380 VAC |
| Voltage - Isolation | 4.242 kV |
| Voltage - Output 1 | 180 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
T100104286 Series
Enclosed AC DC Converters 1 Output 180V 380 ~ 480 VAC (3 Phase) Input
