RH4B-UAC240V

Active

IDEC

RELAY PLUG-IN 4PDT 10A 240VAC ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RH4B-UAC240V

Active

IDEC

RELAY PLUG-IN 4PDT 10A 240VAC ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RH4B-UAC240V

Approval Agency	CSA, TUV, cURus, CE
Coil Current	8.3 mA
Coil Resistance	9.12 kOhms
Coil Type	Non Latching
Coil Voltage	240 VAC
Contact Form	4PDT (4 Form C)
Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	10 A
Load - Max Switching	300 W, 2400 VA
Mounting Type	Socketable
Must Operate Voltage	192 VAC
Must Release Voltage	72 VAC/DC
Operate Time	25 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Relay Type	General Purpose
Release Time	25 ms
Switching Voltage	30 VDC, 240 VAC
Termination Style	Plug In, Quick Connect - 0.187" (4.7mm)

RH4B-U Series

Part	Coil Type	Relay Type	Must Release Voltage	Switching Voltage	Approval Agency	Coil Current	Coil Voltage	Contact Form	Operate Time	Release Time	Mounting Type	Coil Resistance	Must Operate Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Contact Material	Load - Max Switching	Features	Contact Rating (Current)
IDEC RH4B-UCDC24V	Non Latching	General Purpose	2.4 VDC	30 VDC 240 VAC	CE CSA cURus TUV	62 mA	24 VDC	4PDT (4 Form C)	25 ms	25 ms	Socketable	388 Ohms	19.2 VDC	70 °C	-25 °C	Plug In Quick Connect - 0.187" (4.7mm)	Silver Cadmium Oxide (AgCdO)	300 W 2400 VA	Test Button	10 A
IDEC RH4B-ULCAC120V	Non Latching	General Purpose	36 VAC	28 VDC 120 VAC	CE CSA cURus TUV	16.5 mA	120 VAC	4PDT (4 Form C)	25 ms	25 ms	Socketable	7.36 kOhms	96 VAC	70 °C	-25 °C	Plug In Quick Connect - 0.187" (4.7mm)	Silver Cadmium Oxide (AgCdO)	280 W 1200 VA	Lighted Indicator Test Button	10 A
IDEC RH4B-UAC240V	Non Latching	General Purpose	72 VAC/DC	30 VDC 240 VAC	CE CSA cURus TUV	8.3 mA	240 VAC	4PDT (4 Form C)	25 ms	25 ms	Socketable	9.12 kOhms	192 VAC	70 °C	-25 °C	Plug In Quick Connect - 0.187" (4.7mm)	Silver Cadmium Oxide (AgCdO)	300 W 2400 VA		10 A
IDEC RH4B-ULCDC6V	Non Latching	General Purpose	0.6 VDC	30 VDC 240 VAC	CE CSA cURus TUV	250 mA		4PDT (4 Form C)	25 ms	25 ms	Socketable	24 Ohms	4.8 VDC	70 °C	-25 °C	Plug In Quick Connect - 0.187" (4.7mm)	Silver Cadmium Oxide (AgCdO)	300 W 2400 VA	Lighted Indicator Test Button	10 A
IDEC RH4B-UCDC12V	Non Latching	General Purpose	1.2 VDC	30 VDC 240 VAC	CE CSA cURus TUV	125 mA	12 VDC	4PDT (4 Form C)	25 ms	25 ms	Socketable	96 Ohms	9.6 VDC	70 °C	-25 °C	Plug In Quick Connect - 0.187" (4.7mm)	Silver Cadmium Oxide (AgCdO)	300 W 2400 VA	Test Button	10 A
IDEC RH4B-UAC120V	Non Latching	General Purpose	36 VAC	28 VDC 120 VAC	CE CSA cURus TUV	16.5 mA	120 VAC	4PDT (4 Form C)	25 ms	25 ms	Socketable	7.36 kOhms	96 VAC	70 °C	-25 °C	Plug In Quick Connect - 0.187" (4.7mm)	Silver Cadmium Oxide (AgCdO)	280 W 1200 VA		10 A
IDEC RH4B-ULCDC110V	Non Latching	General Purpose	11 VDC	30 VDC 240 VAC	CE CSA cURus TUV	15 mA	110 VDC	4PDT (4 Form C)	25 ms	25 ms	Socketable	7.34 kOhms	88 VDC	70 °C	-25 °C	Plug In Quick Connect - 0.187" (4.7mm)	Silver Cadmium Oxide (AgCdO)	300 W 2400 VA	Lighted Indicator Test Button	10 A
IDEC RH4B-UAC6V	Non Latching	General Purpose	1.8 VAC	30 VDC 240 VAC	CE CSA cURus TUV	330 mA	6 VAC	4PDT (4 Form C)	25 ms	25 ms	Socketable	5.8 Ohms	4.8 VAC/DC	70 °C	-25 °C	Plug In Quick Connect - 0.187" (4.7mm)	Silver Cadmium Oxide (AgCdO)	300 W 2400 VA		10 A
IDEC RH4B-UDC24V	Non Latching	General Purpose	2.4 VDC	28 VDC 120 VAC	CE CSA cURus TUV	62 mA	24 VDC	4PDT (4 Form C)	25 ms	25 ms	Socketable	388 Ohms	19.2 VDC	70 °C	-25 °C	Plug In Quick Connect - 0.187" (4.7mm)	Silver Cadmium Oxide (AgCdO)	280 W 1200 VA		10 A
IDEC RH4B-ULCAC12V	Non Latching	General Purpose	3.6 VAC	30 VDC 240 VAC	CE CSA cURus TUV	165 mA	12 VAC/DC	4PDT (4 Form C)	25 ms	25 ms	Socketable	23.1 Ohms	9.6 VAC/DC	70 °C	-25 °C	Plug In Quick Connect - 0.187" (4.7mm)	Silver Cadmium Oxide (AgCdO)	300 W 2400 VA	Lighted Indicator Test Button	10 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.60
Newark	Each	1	$ 24.22
		5	$ 22.88
		10	$ 20.11
		25	$ 18.06
		50	$ 16.93
		100	$ 16.01
		250	$ 15.09

Description

General part information

RH4B-U Series

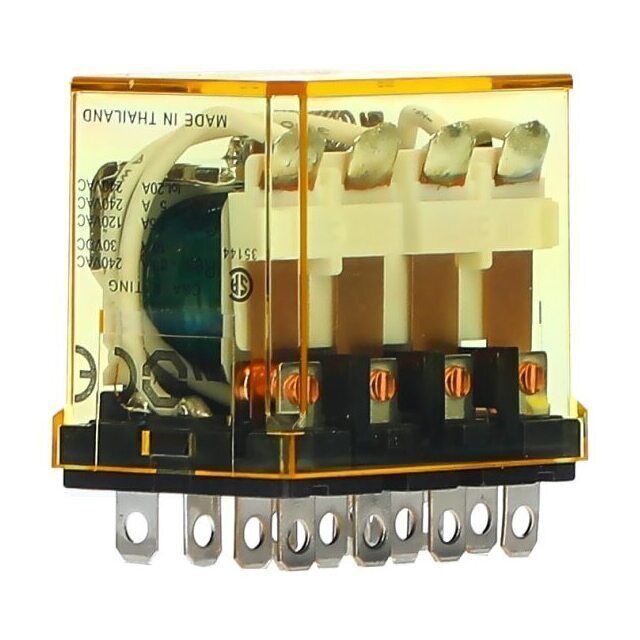

General Purpose Relay 4PDT (4 Form C) 240VAC Coil Socketable
