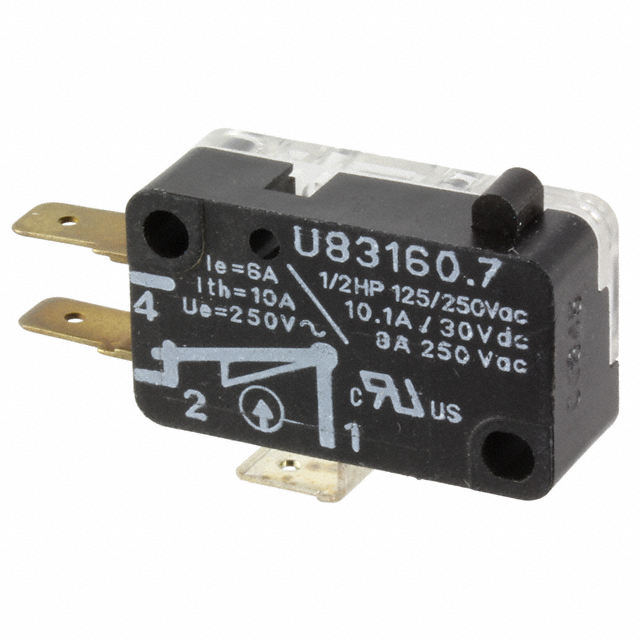

831607C6.0
ActiveCrouzet
SWITCH SNAP ACTION SPDT 6A 250V
Deep-Dive with AI
Search across all available documentation for this part.
831607C6.0
ActiveCrouzet
SWITCH SNAP ACTION SPDT 6A 250V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 831607C6.0 |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPDT |
| Current Rating (Amps) | 6 A |
| Electrical Life | 100000 Cycles |
| Mechanical Life | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 408 gf |
| Operating Position | 14.8 mm |
| Operating Position | 0.583 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overtravel | 0.051 in |
| Overtravel | 1.3 mm |
| Release Force | 153 gf |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
831607 Series
Switch SPDT Chassis Mount
